View All TagsAWS IoT Core – Iron Man – Part 1
Bought the Iron Man Mark 3 3D Printing model designs from https://www.wf3d.shop/products/ironman-mark-3-suit-3d-printable-model by Walsh3D
Printed these so far:
FeedMyFurBabies – Storing Historical AWS IoT Core MQTT State data in Amazon Timestream
In my code examples I shared in the past, when I sent and received IoT messages and states to and from AWS Core IoT Topics, I only implemented subscribers to react to perform a functionality when an MQTT message is received on a Topic; while that it was useful when my FurBaby was feed in the case when the Cat Feeder was triggered to drop Temptations into the bowls, however, we did not keep a record of the feeds or the State of the Cat Feeder into some form of data store over time - this meant we did not track when or how many times food was dropped into a bowl.
In this blog, I will demonstrate how to store the data in the MQTT messages sent to AWS IoT Core and ingest the data into Amazon Timestream database; Timestream is a serverless time-series database that is fully managed so we can leverage with worrying about maintaining the database infrastructure.
Architecture
In this architecture we have two AWS IoT Core Topics, where each IoT Topic has an IoT Rule associated with it that will send all the data from every MQTT message receieved from that Topic - there is an ability to filter the messages but we've not using to use it, and that data is ingested into a corresponding Amazon Timestream table.
Deploying the reference architecture
git clone git@github.com:chiwaichan/feedmyfurbabies-cdk-iot-timestream.git
cd feedmyfurbabies-cdk-iot-timestream
cdk deploy
git remote rm origin
git remote add origin https://git-codecommit.us-east-1.amazonaws.com/v1/repos/feedmyfurbabies-cdk-iot-timestream-FeedMyFurBabiesCodeCommitRepo
git push --set-upstream origin main
Here is a link to my GitHub repository where this reference architecture is hosted: https://github.com/chiwaichan/feedmyfurbabies-cdk-iot-timestream
Simulate an IoT Thing to Publish MQTT Messages to IoT Core Topic
In the root directory of the repository is a script that simulates an IoT Thing and it will constantly publish MQTT messages to the "cat-feeder/states" Topic; ensure you have the AWS CLI installed on your machine with a default profile as it relies on it, and ensure the Access Keys used by the default profile has the permission to call "iot:Publish".
It sends a random number for the "food_capacity" that ranges 0-100 to represent the percentage of food that is remaining in a cat feeder, and a values for the "device_location" as we are scaling out with the number of cat feeders placed around the house. Be sure to send the same JSON structure in your MQTT message if you decide to not use the provided script to send the messages to the Topic.
Query the data stored in the Amazon Timestream Database/Table
Now lets jump into the AWS Console, then jump into the Timestream Service and go into the "catFeedersStates" Table; then click on "Actions" to show the "Query table" option to go to the Query editor.
The Query editor will show a default query statement, click "Run" and you will see in the Query results the data from the MQTT messages that was generated by the script; where the MQTT messages was ingested from the IoT Topic "cat-feeder/states".
FeedMyFurBabies – Send and Receive MQTT messages between AWS IoT Core and your micro-controller – I am switching from Arduino CPP to MicroPython
Recently I switched my Cat Feeder project's IaC to AWS CDK in favour of increasing my focus and productivity on building and iterating, rather than constantly mucking around with infrastructure everytime I resume my project after a break; which is rare and far between these days.
Just as with coding IoT microcontrollers such as the ESP32s, I want to get straight back into building every opportunity I get; so I am also switching away from Arduino based microcontroller development written in C++ - I don't have a background in C++ and to be honest this is the aspect I struggled with the most because I tend to forget things after not touching it for 6 months or so.
So I am switching to MicroPython to develop the logic for all my IoT devices going forward, this means I get to use Python - a programming lanaguge I work with frequently so there is less chance of me being forgetful when I use it at least once a month. MicroPython is a lean and efficient implementation of the Python 3 programming language that includes a subset of the Python standard library and is optimized to run on microcontrollers and in constrained environments - a good fit for IoT devices such as the ESP32!
What about all the Arduino hardware and components I already invested in?
Good news is MircoPython is supported on all ESP32 devices - based on the ones I myself have purchased; all I need to do to each ESP32 device is to flash it with a firmware - if you are impatient, you can scroll down and skip to below to the flashing the firmware section. When I first started Arduino, MicroPython was available to use, but that was 2 years ago and there were not as many good blog and tutorial content out there as there is today; I couldn't at the time work out how to control components such as sensors, servos and motors as well as I could with C++ based coding using Arduino; nowdays there are way more content to learn off and I've learnt (by PoCing individual components) enough to switch to MicroPython. As far as I understand it, any components you have for Arduino can be used in MicroPython, provided that there is a library out there that supports it, if there isn't then you can always write your own!
What's covered in this blog?
By the end of this blog, you will be able to send and receive MQTT messages from AWS IoT core using MicroPython, I will also cover the steps involved in flashing a MicroPython firmware image onto an ESP32C3. Although this blog has a focus and example on using an ESP32, this example can be applied to any micro-controllers of any brand or flavours, provided the micro-controller you are using supports MicroPython.
Flashing the MicroPython firmware onto a Seeed Studio XIAO ESP32C3
The following instructions works for any generic ESP32C3 devices!
Download the latest firmware from micropython.org
https://micropython.org/download/ESP32_GENERIC_C3/
Next, I connected my ESP32C3 to my Mac and ran the following command to find the name of the device port
/dev/ttyUSB0
My ESP32C3 is named "/dev/tty.usbmodem142401", the name for your ESP32C3 may be different.
Next, install esptool onto your computer, then run the following commands to flash the MicroPython firmware onto the ESP32C3 using the bin file you've just downloaded.
esptool.py --chip esp32c3 --port /dev/tty.usbmodem142401 erase_flash
esptool.py --chip esp32c3 --port /dev/tty.usbmodem142401 --baud 460800 write_flash -z 0x0 ESP32_GENERIC_C3-20240105-v1.22.1.bin
It should look something like this when you run the commands.
Install Thonny and run it. Then go to Tools -> Options, to configure the ESP32C3 device in Thonny to match the settings shown in the screenshot below.
If everything went well, you should see these 2 sections in Thonny: "MicroPython Device" and "Shell", if not then try clicking on the Stop button in the top menu.

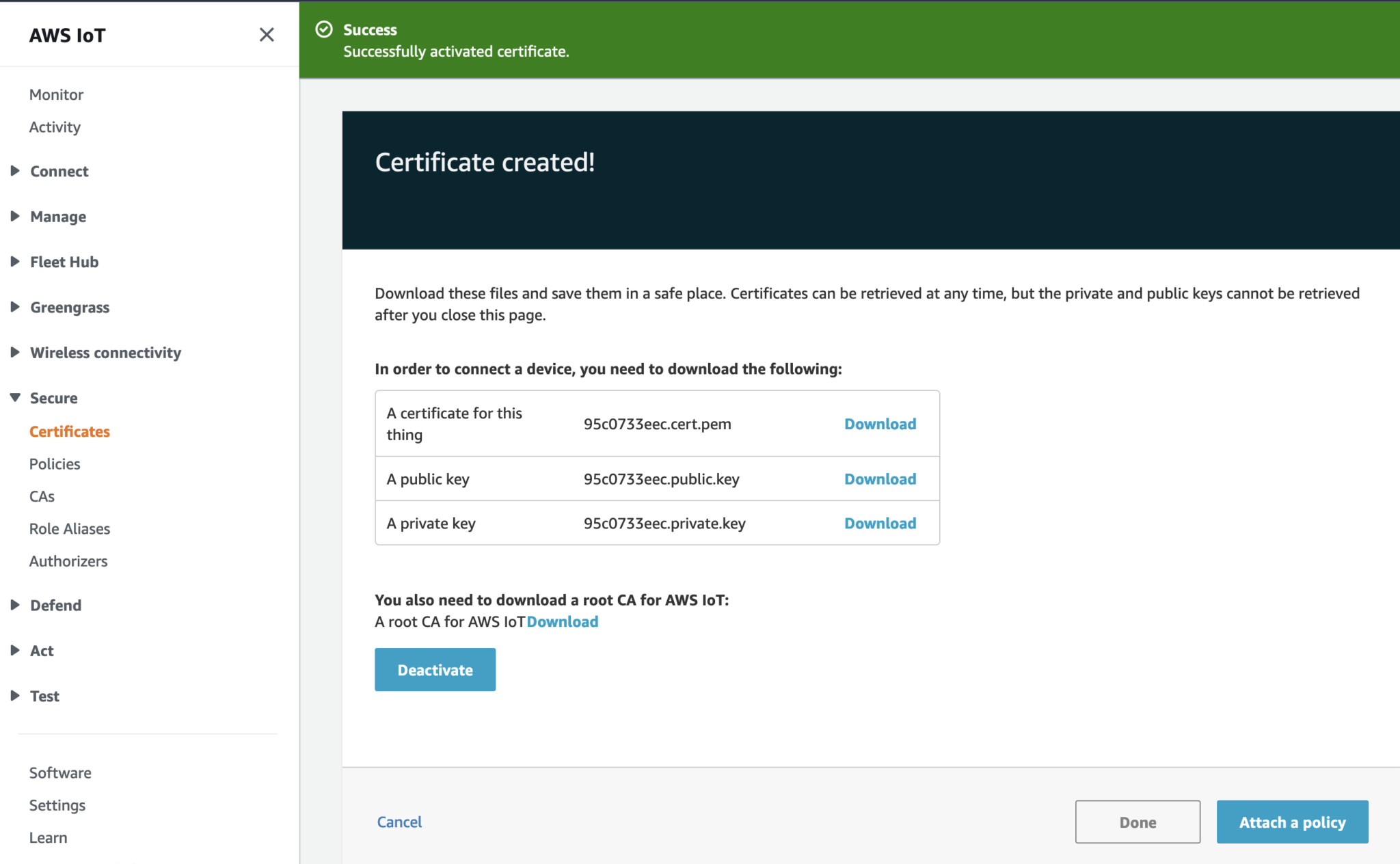

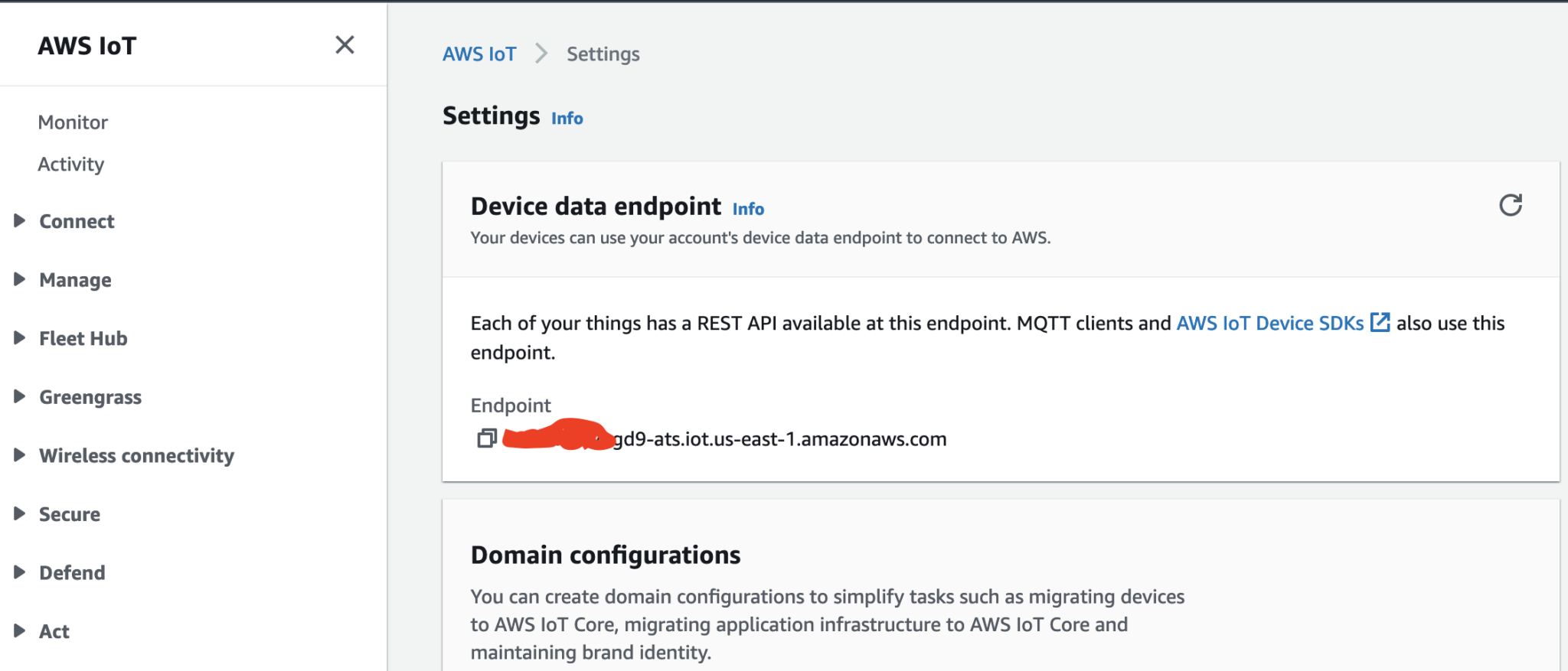

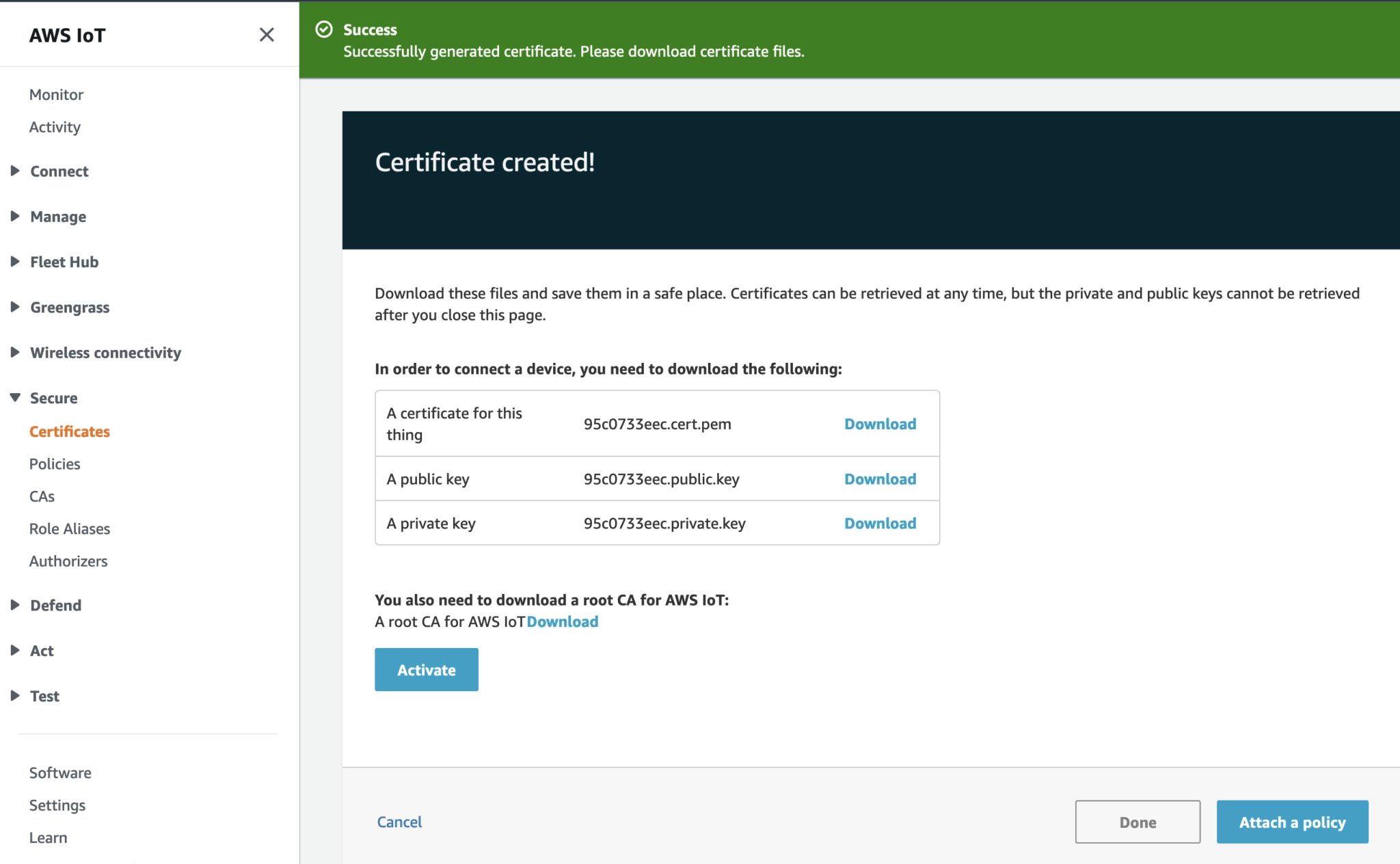

AWS IoT Core Certificates and Keys

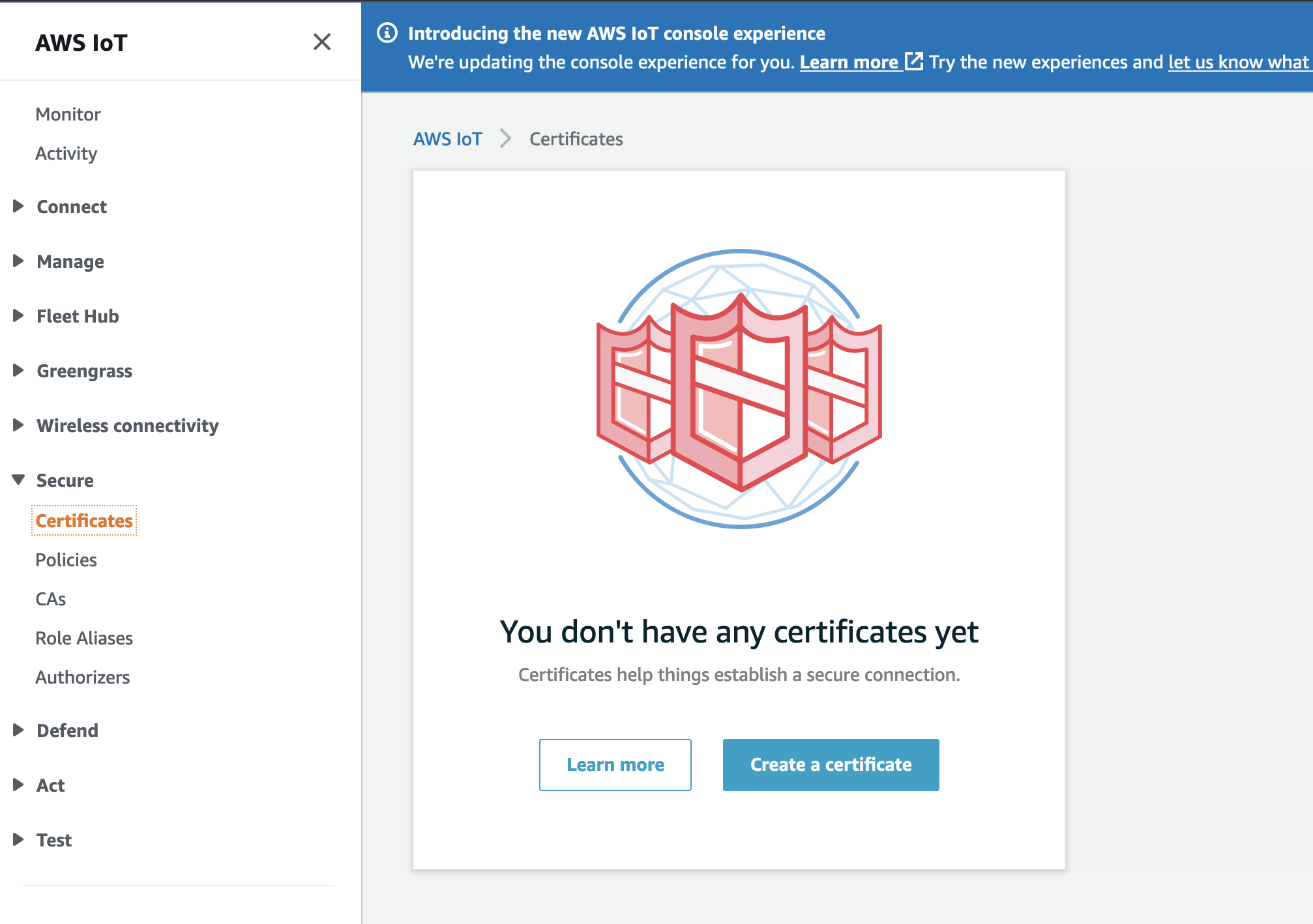

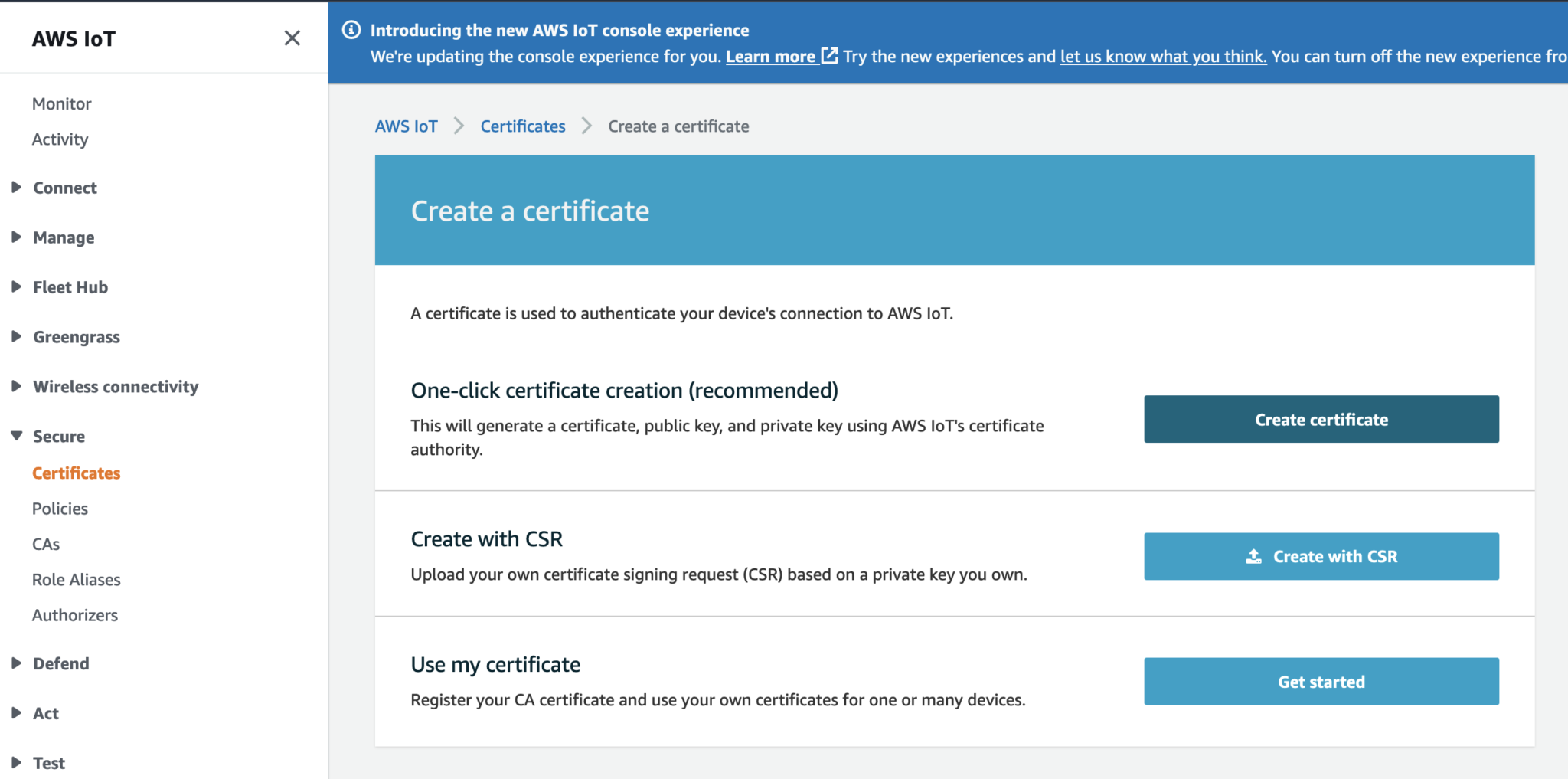

In order to send MQTT messages to an AWS IoT Core Topic, or to receive a message from a Topic in reverse, you will need a set of Certificate and Key\s for your micro-controller; as well as the AWS IoT Endpoint specific to your AWS Account and Region.
It's great if you have those with you so you can skip to the next section, if not, do not worry I've got you covered. In a past blog I have a reference architecture accompanied by a GitHub repository on how to deploy resources for an AWS IoT Core solution using AWS CDK, follow that blog to the end and you will have a set of Certificate and Key to use for this MicroPython example; the CDK Stack will deploy all the neccessary resources and policies in AWS IoT Core to enable you to both send and receive MQTT messages to two separate IoT Topics.
Reference AWS IoT Core Architecture: https://chiwaichan.co.nz/blog/2024/02/02/feedmyfurbabies-i-am-switching-to-aws-cdk/
Upload the MicroPython Code to your device
Now lets upload the MicroPython code to your micro-controller and prepare the IoT Certificate and Key so we can use it to authenticate the micro-controller to enable it to send and receive MQTT messages between your micro-controller and IoT Core.
Clone my GitHub repository that contains the MicroPython example code to publish and receive MQTT message with AWS IoT Core: https://github.com/chiwaichan/feedmyfurbabies-micropython-iot
It should look something like this.
Copy your Certificate and Key into the respective files shown in the above screenshot; otherwise, if you are using the Certificate and Key from my reference architecture, then you should use the 2 Systems Manager Parameter Store values create by the CDK Stack.
Next we convert the Certificate and Key to DER format - converting the files to DER format turns it into a binary format and makes the files more compact, especially neccessary when we run use it on small devices like the ESP32s.
In a terminal go to the certs directory and run the following commands to convert the certificate.pem and private.key files into DER format.
openssl rsa -in private.key -out key.der -outform DER
openssl x509 -in certificate.pem -out cert.der -outform DER
You should see two new files with the DER extension appear in the directory if all goes well; if not, you probably need to install openssl.
In Thonny, in the Files explorer, navigate to the GitHub repository's Root directory and open the main.py file. Fill in the values for the variables shown in the screenshot below to match your environment, if you are using my AWS CDK IoT referenece architecture then you are only required to fill in the WIFI details and the AWS IoT Endpoint specific to your AWS Account and Region.
Select both the certs folder and main.py in the Files explorer, then right click and select "Upload to /" to upload the code to your micro-controller; the files will appear in the "MicroPython Device" file explorer.
This is the moment we've been waiting for, lets run the main.py Python script by clicking on the Play Icon in green.
If all goes well you should see some output in the Shell section of Thonny.
The code in the main.py file has a piece of code that is generating a random number for the food_capacity percentage property in the MQTT message; you can customise the message to fit your use case.
But lets verify it is actually received by AWS IoT Core.
Alright, lets go the other way and see if we can receive MQTT messages from AWS IoT Core using the other Topic called "cat-feeder/action" we subscribed to in the MicroPython code.

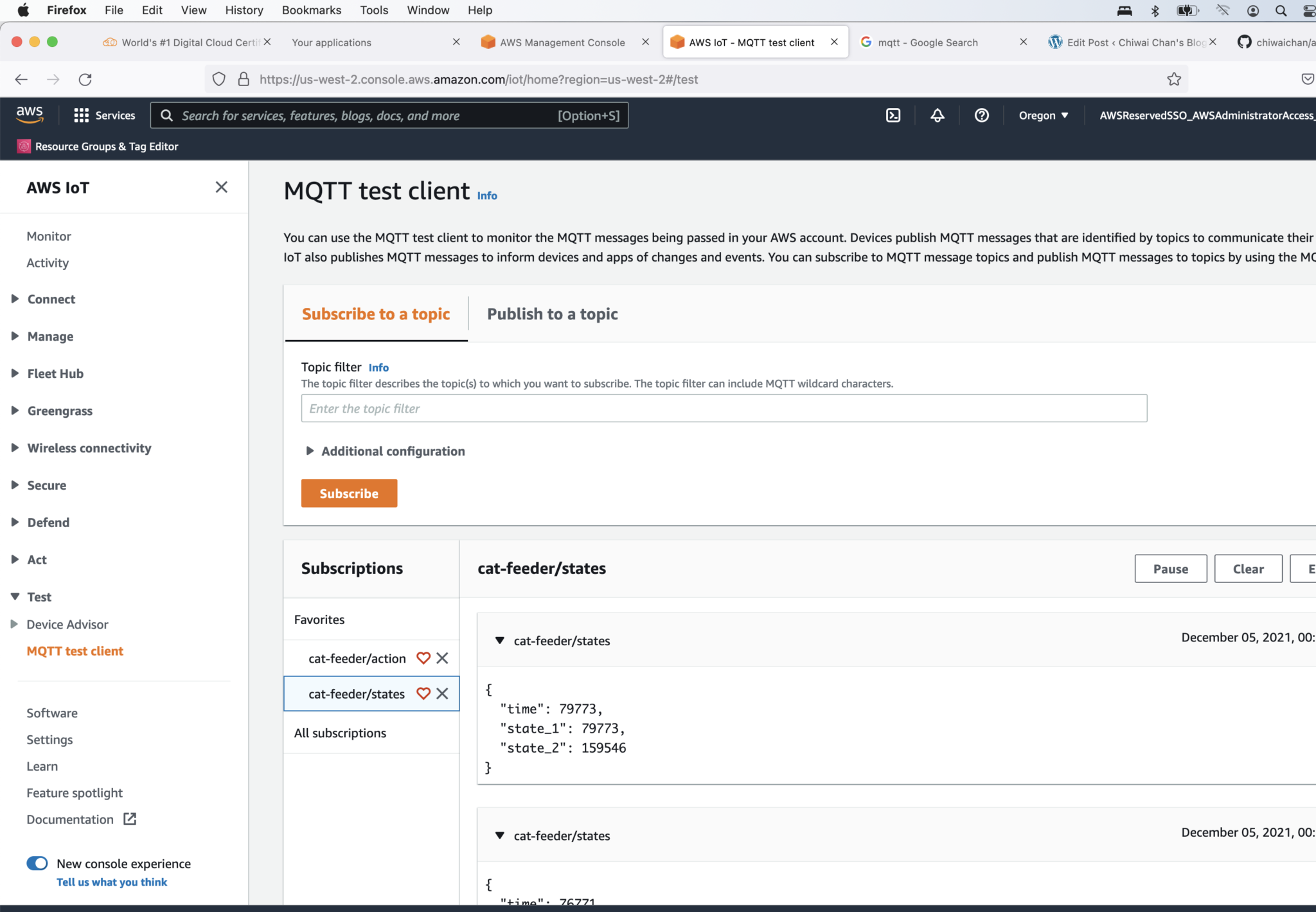

Lets go back the AWS Console and use the MQTT test client to publish a message.
In the Thonny Shell we can see the message "Hello from AWS IoT console" sent from the AWS IoT Core side and it being received by the micro-controller.
Getting the Golden Jacket with my Cat Squad
It is real.
Feed My Fur Babies – AWS Amplify and Route53
I'm starting a new blog series where I will be documenting my build of a full-stack Web and Mobile application using AWS Amplify to implement both the frontend, as well as the backend; whilst developing dependent downstream Services outside of Amplify using AWS Serverless components to implement a Micro-Service architecture using Event-Driven design pattern - where we will break the application up into smaller consumable chunks that works together well.
Since we are creating from scratch a completely new application, I will also incorporate a vital pattern that will reduce complexity throughout the lifetime of the application: we will also be implementing the application using the Event-Sourcing pattern - this pattern ensures every Event ever published within a system is stored within an immutable ledger; this ledger will enable new Data Stores of any Data Store Engine to be created at any given time by replaying the Events in the ledger, of Events created from a start date and time to an end Date and Time.
CQRS is a pattern I will write up about with great detailed in a blog in the near future, CQRS will enable the ability to create mulitple Data Stores with identical data, each Data Store using a unique Data Store Engine instance.
What is AWS Amplify?
Amplify is an AWS Service that provides any frontend web or mobile developers with no cloud expertise the ability to build and host full-stack applications on AWS. As a frontend developer, you can leverage it to build and integrate AWS Services and components into your frontend without having to deal with the underlying AWS Services; all Services the frontend is built on top of is managed by AWS Amplify - e.g. no need to managed CloudFormation Stacks, S3 Storage or AWS Cognito.
What will I be doing with Amplify
My experience from a while ago was full-stack application development and I have worked under that role for over 10 years, I've used various frontend/backend frameworks, components and patterns.
I will be building a website called Feed My Fur Babies where I will provide video streams showing live feeds of my cats from web cams placed in various spots around my house, the website will also provide users with the ability to feed my cats using internet enabled devices like the IoT Cat Feeders I recently put together and watch them hoon on their favorite treats; although I am experienced with building websites from the ground up using AWS Service, I am aiming to build Feed My Fur Babies whilst leveraging as little as possible on that experience - this is so I am building the website as close to the targeted demographics skillset of a typical Amplify as possible, i.e. as a developer with only frontend experience.

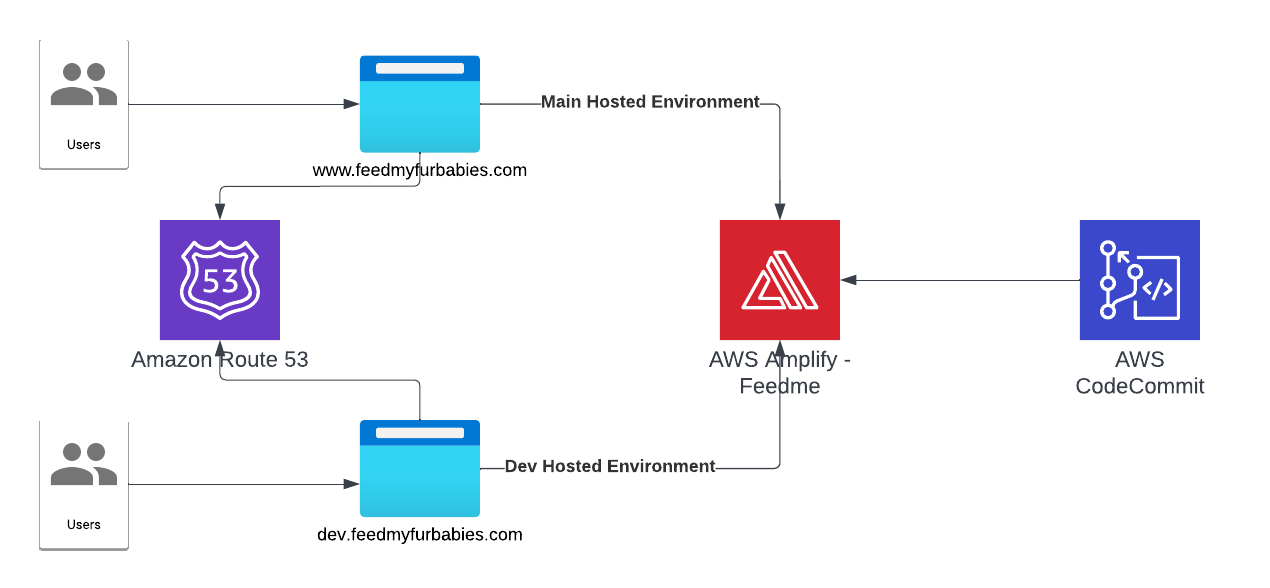

Current Architecture State
Update
Let's talk about what was done to get to the current architecture state.

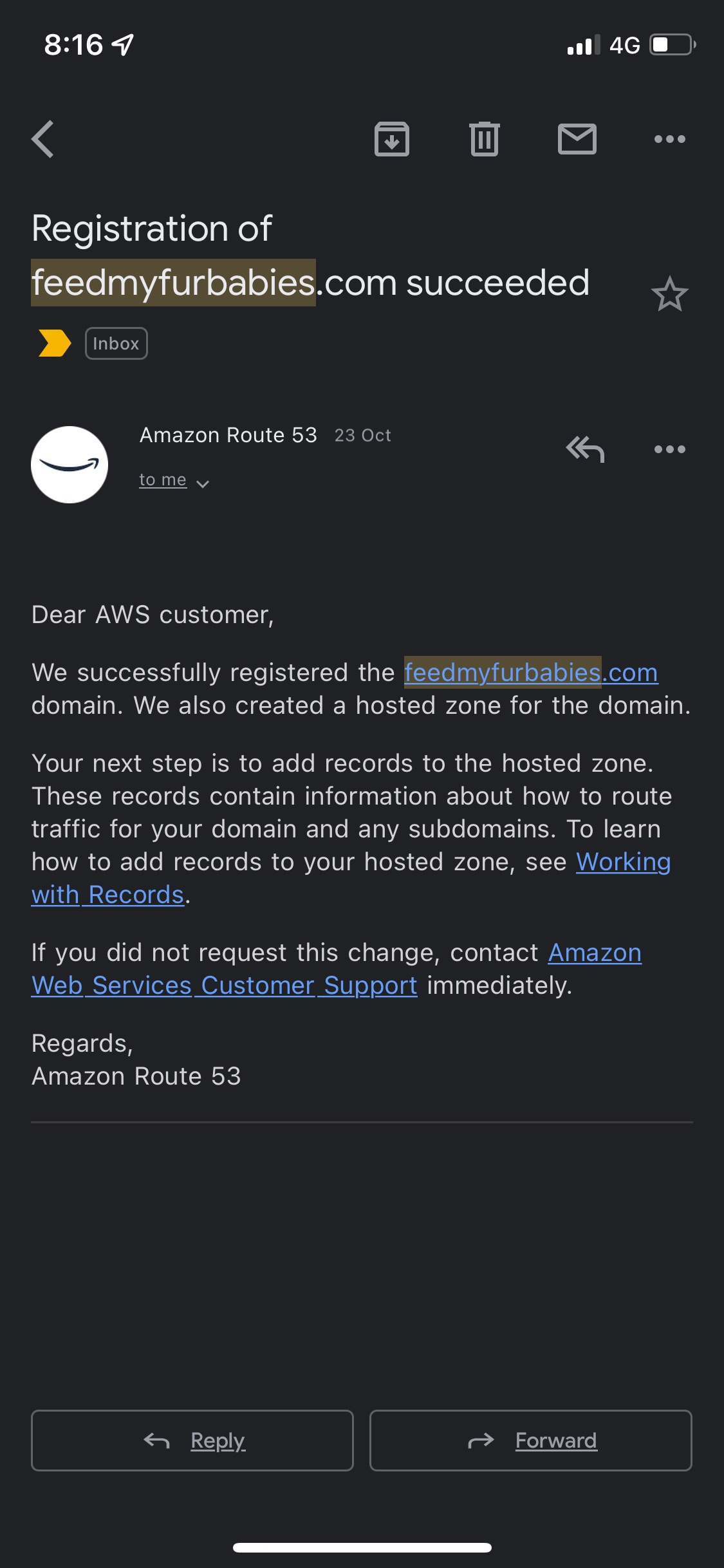

First thing I did was buying the domain feedmyfurbabies.com using AWS Route53.

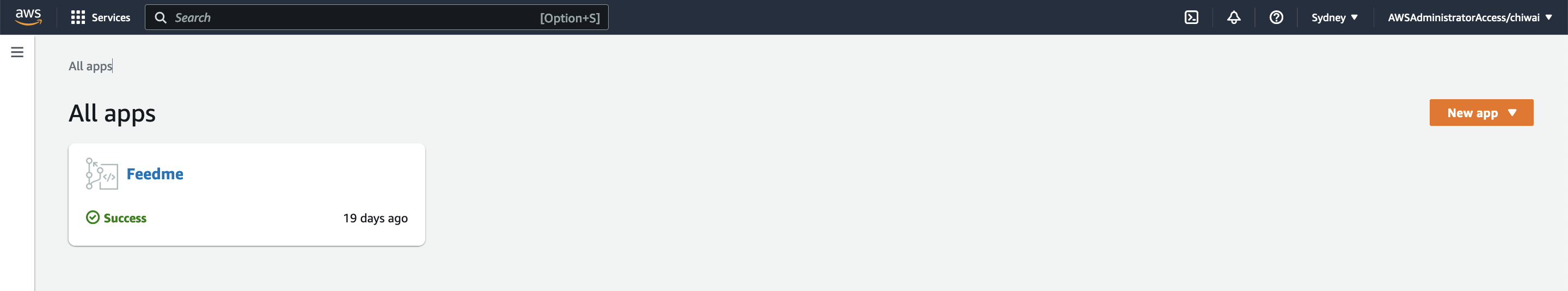

Next, I created a new Amplify App called "Feedme".

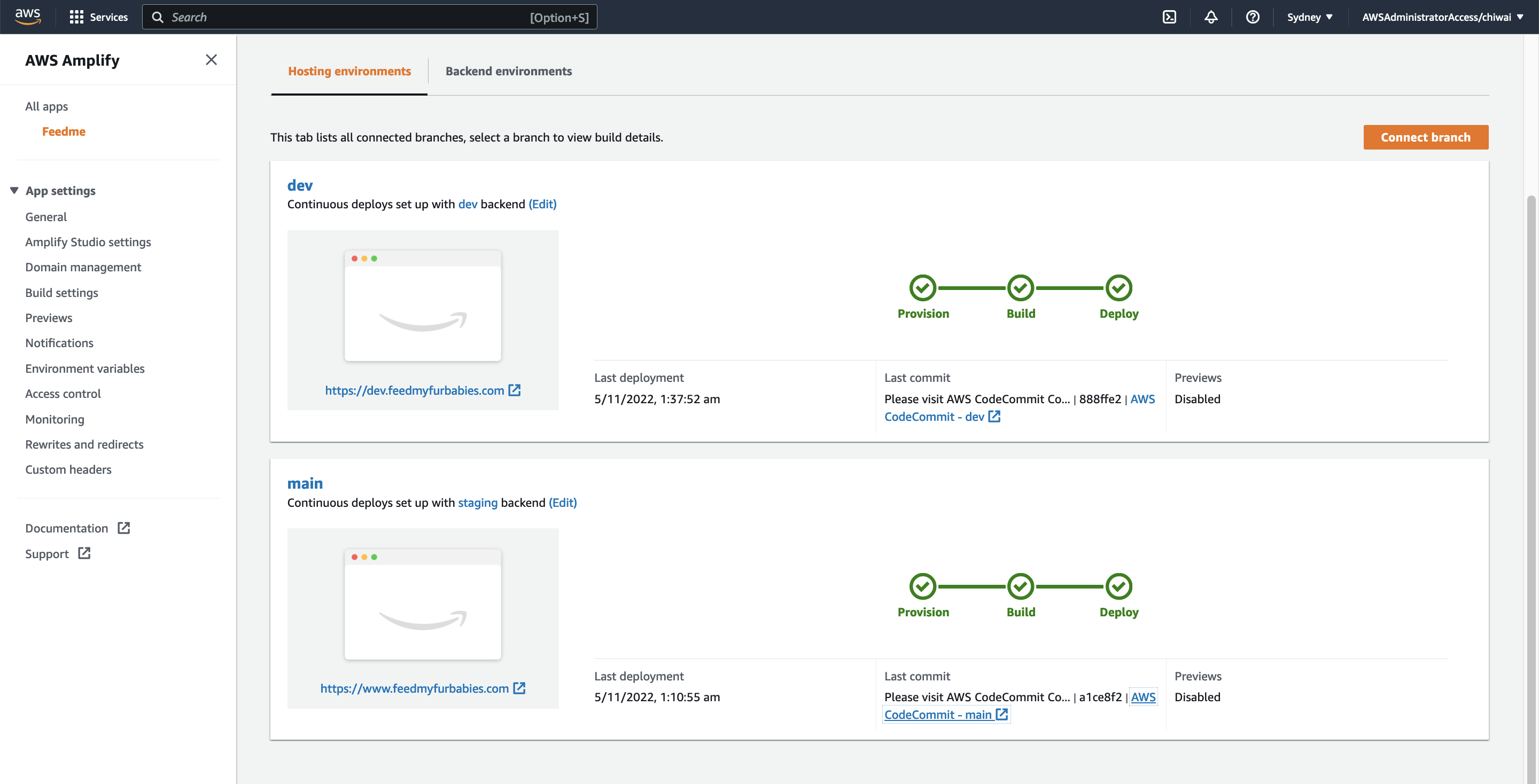

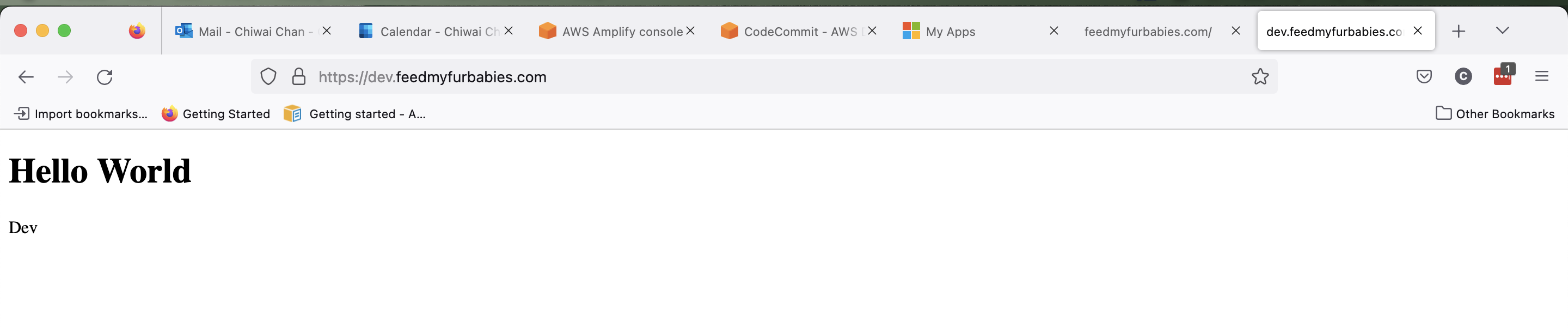

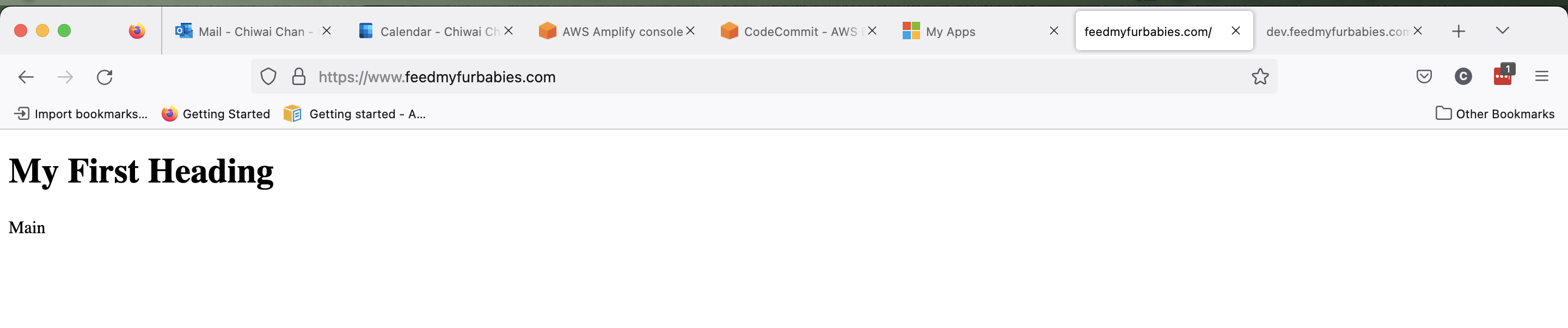

Within the App I created two Hosted Environments: one environment is to host the production environment, the other is to host a development environment. Each Hosted Environment is configured to be built and deployed from a specfic Branch in the shared CodeCommit Repository used to version control the frontend source code.
AWS DeepRacer
This blog is to detail my first experiences with AWS DeepRacer as somebody who knows very little about how AI works under the hood, and at first didn't fully understand the difference between Supervised Learning vs Unsupervised Learning vs Reinforcement Learning when I was writing my first Python code for the "reward_function".
DeepRacer is a Reinforcement Learning based AWS Machine Learning Service that provides a quick and fun way to get into ML by letting you build and train an ML model that can be used to drive around on a virtual, as well as a physical race track.
I'm a racing fan in many ways whether it is watching Formula 1, racing my mates in go karting or having a hoon on the scooter, so once I found out about AWS DeepRacer service I've always wanted to dip my toes in it. More than 2 years later I found an excuse to play with it during my preparations for the AWS Certified Machine Learning Specialty exam, I am expecting a question or two on DeepRacer in the exam so what better way to learn about DeepRacer than to try it out by cutting some Python code.
Goal
Have a realistic one this time and keep it simple: produce an ML model that can drive a car around a few diferent virtual tracks for a few laps without going off the track.
My Machine Learning background and relevant experience
- Statistics, Calculus and Physics: was pretty good at these during high school and did ok in Statistics and Calculas during uni.
- Python: have been writing some Python code in the past couple of years on and off, mainly in AWS Lambda functions.
- Machine Learning: none
- Writing code for mathematic: had a job that involved writing complex mathmatic equations and tree based algorithms in Ruby and Java for about 7 years
Approach
Code a Python Reward Function to return a Reinforcement Reward value based on the state of the DeepRacer vehicle - the reward can be positive for good behaviour and also be negative to discourage the agent (vehicle) for a state that is not going to give us a good race pace. The state of the vehicle is a set of key/values shown below and is available to the Python Reward Function during runtime for us to use to calculate a reward value.
# "all_wheels_on_track": Boolean, # flag to indicate if the agent is on the track
# "x": float, # agent's x-coordinate in meters
# "y": float, # agent's y-coordinate in meters
# "closest_objects": [int, int], # zero-based indices of the two closest objects to the agent's current position of (x, y).
# "closest_waypoints": [int, int], # indices of the two nearest waypoints.
# "distance_from_center": float, # distance in meters from the track center
# "is_crashed": Boolean, # Boolean flag to indicate whether the agent has crashed.
# "is_left_of_center": Boolean, # Flag to indicate if the agent is on the left side to the track center or not.
# "is_offtrack": Boolean, # Boolean flag to indicate whether the agent has gone off track.
# "is_reversed": Boolean, # flag to indicate if the agent is driving clockwise (True) or counter clockwise (False).
# "heading": float, # agent's yaw in degrees
# "objects_distance": [float, ], # list of the objects' distances in meters between 0 and track_length in relation to the starting line.
# "objects_heading": [float, ], # list of the objects' headings in degrees between -180 and 180.
# "objects_left_of_center": [Boolean, ], # list of Boolean flags indicating whether elements' objects are left of the center (True) or not (False).
# "objects_location": [(float, float),], # list of object locations [(x,y), ...].
# "objects_speed": [float, ], # list of the objects' speeds in meters per second.
# "progress": float, # percentage of track completed
# "speed": float, # agent's speed in meters per second (m/s)
# "steering_angle": float, # agent's steering angle in degrees
# "steps": int, # number steps completed
# "track_length": float, # track length in meters.
# "track_width": float, # width of the track
# "waypoints": [(float, float), ] # list of (x,y) as milestones along the track center
Based on this set of key/values we can get a pretty good idea of the state of the vehicle/agent and what it was getting up to on the track.
So using these key/values we calculate and return a value for the Reward Function in Python. For example, if the value for "is_offtrack" is "true" then this indicates the vehicle has come off the track so we can return a negative value for the Reward Function; also, we might want to amplify the negative reward if the vehicle was doing something else it should not be doing - like steering right into a left turn (steering_angle).
Conversely, we return a positive reward value for good behaviour such as steering straight on a long stretch of the track going as fast as possible within the center of the track.
My approach to coding the Reward Functions was pretty simple: calculate the reward value based on how I myself would physically drive on a go kart track; factor as much into the calculations as possible such as how the vehicle is hitting the apex, and is it hitting it from the outside of the track or the inside; is the vehicle in a good position to take the next turn or two. For each iteration of the code, I train a new model in AWS DeepRacer with it; I normally watch the video of the simulation to pay attention to what could be improved in the next iteration; then we do the whole process all over again.
Within the Reward Function I work out a bunch of sub-rewards such as:
- steering straight on a long stretch of the track as fast as possible within the center of the track
- is the vehicle in a good position to take the next turn or two
- is the vehicle was doing something else it should not be doing like steering right into a left turn
These are just some examples of sub-rewards I work out - and the list grows as I iterate and improve (or make it worse) with each version of the reward function, at the end of each function I calculate the net reward value based on the sum up of the weighted sub-rewards; each sub-reward could have a higher importance than another so I've taken a weighted approach to the calculation to allow a sub-reward to amplify the effect it has on the net reward value.
Code
Here is the very first version of the Reward Function I coded:
MAX_SPEED = 4.0
def reward_function(params):
track_width = params['track_width']
distance_from_center = params['distance_from_center']
steering_angle = params['steering_angle']
speed = params['speed']
weighted_sub_rewards = []
half_track_width = track_width / 2.0
within_percentage_of_center_weight = 1.0
steering_angle_weight = 1.0
speed_weight = 0.5
steering_angle_and_speed_weight = 1.0
add_weighted_sub_reward(weighted_sub_rewards, "within_percentage_of_center_weight", within_percentage_of_center_weight, get_sub_reward_within_percentage_of_center(distance_from_center, track_width))
add_weighted_sub_reward(weighted_sub_rewards, "steering_angle_weight", steering_angle_weight, get_sub_reward_steering_angle(steering_angle))
add_weighted_sub_reward(weighted_sub_rewards, "speed_weight", speed_weight, get_sub_reward_speed(speed))
add_weighted_sub_reward(weighted_sub_rewards, "steering_angle_and_speed_weight", steering_angle_and_speed_weight, get_sub_reward_steering_angle_and_speed_weight(steering_angle, speed))
print(weighted_sub_rewards)
weight_total = 0.0
numerator = 0.0
for weighted_sub_reward in weighted_sub_rewards:
sub_reward = weighted_sub_reward["sub_reward"]
weight = weighted_sub_reward["weight"]
weight_total += weight
numerator += sub_reward * weight
print("sub numerator", weighted_sub_reward["sub_reward_name"], (sub_reward * weight))
print(numerator)
print(weight_total)
print(numerator / weight_total)
return numerator / weight_total
def add_weighted_sub_reward(weighted_sub_rewards, sub_reward_name, weight, sub_reward):
weighted_sub_rewards.append({"sub_reward_name": sub_reward_name, "sub_reward": sub_reward, "weight": weight})
def get_sub_reward_within_percentage_of_center(distance_from_center, track_width):
half_track_width = track_width / 2.0
percentage_from_center = (distance_from_center / half_track_width * 100.0)
if percentage_from_center <= 10.0:
return 1.0
elif percentage_from_center <= 20.0:
return 0.8
elif percentage_from_center <= 40.0:
return 0.5
elif percentage_from_center <= 50.0:
return 0.4
elif percentage_from_center <= 70.0:
return 0.15
else:
return 1e-3
# The reward is better if going straight
# steering_angle of -30.0 is max right
def get_sub_reward_steering_angle(steering_angle):
is_left_turn = True if steering_angle > 0.0 else False
abs_steering_angle = abs(steering_angle)
print("abs_steering_angle", abs_steering_angle)
if abs_steering_angle <= 3.0:
return 1.0
elif abs_steering_angle <= 5.0:
return 0.9
elif abs_steering_angle <= 8.0:
return 0.75
elif abs_steering_angle <= 10.0:
return 0.7
elif abs_steering_angle <= 15.0:
return 0.5
elif abs_steering_angle <= 23.0:
return 0.35
elif abs_steering_angle <= 27.0:
return 0.2
else:
return 1e-3
def get_sub_reward_speed(speed):
percentage_of_max_speed = speed / MAX_SPEED * 100.0
print("percentage_of_max_speed", percentage_of_max_speed)
if percentage_of_max_speed >= 90.0:
return 0.7
elif percentage_of_max_speed >= 65.0:
return 0.8
elif percentage_of_max_speed >= 50.0:
return 0.9
else:
return 1.0
def get_sub_reward_steering_angle_and_speed_weight(steering_angle, speed):
abs_steering_angle = abs(steering_angle)
percentage_of_max_speed = speed / MAX_SPEED * 100.0
steering_angle_weight = 1.0
speed_weight = 1.0
steering_angle_reward = get_sub_reward_steering_angle(steering_angle)
speed_reward = get_sub_reward_speed(speed)
return (((steering_angle_reward * steering_angle_weight) + (speed_reward * speed_weight)) / (steering_angle_weight + speed_weight))

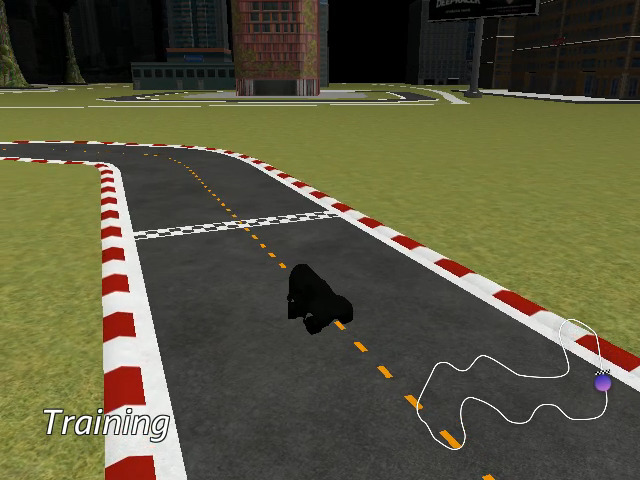

Here is a video of one of the simulation runs:
Here is a link to my Github repository where I have all of versions of reward functions I created: https://github.com/chiwaichan/aws-deepracer/tree/main/models
Conclusion
After a few weeks of training and doing about 20 runs with each run using a different reward function, I did not meet the goal I set out to do - get the agent/vehicle to do 3 laps without coming off the track on a few different tracks. On average each model was only able to race the virtual car around each track for a little over a lap without crashing. It felt like at times I hit a bit of a wall and could not improve the results and in some instances the model got worse. I need to take a break from this to think of a better approach, the way I am doing it is by improving areas without measuring the progress in each area and the amount of improvement made in each.
Next steps
- Learn how to train a DeepRacer model in SageMaker Studio (outside of the DeepRacer Service) using a Jupyter notebook so I can have more control over how models are trained
- Learn and perform HyperParameter Optimizations using some of the SageMaker features and services
- Take a Data and Visualisation driven approach to derive insights into where improvements can be made to the next model iteration
- Learn to optimise the training, e.g. stop the training early when the model is not performing well
- Sit the AWS Certified Machine Learning Specialty exam
Smart Cat Feeder – Part 4
This is the Part 4 and final blog of the series where I detail my journey in learning to build an IoT solution.
Please have a read of my previous blogs to get the full context leading up to this point before continuing.
- Part 1: I talked about setting up a Seeed AWS IoT Button
- Part 2: I talked about publishing events to an Adruino Micro-controller from AWS
- Part 3: I talked about my experience of using a 3D Printer for the first time to print a Cat Feeder
Why am I building this Feeder?
I've always wanted to dip my toes into building IoT solutions beyond doing what a typical tutorial teaches in only turning on LEDs - I wanted to build something that would used everyday. Plus, I often forget to feed the cats while I am away from home (for the day), so it would be nice to come home to a non-grumpy cat by feeding them remotely any time and from any where in the world using the internet.
What was used to build this Feeder?
- A 3D Printer using PLA as the filament material.
- An Arduino based micro-controller - in this case a Seeed Studio XIAO ESP32C3
- A couple of motors and controllers
- AWS Services
- Seeed AWS IoT Button
- Some code
- and some cat food

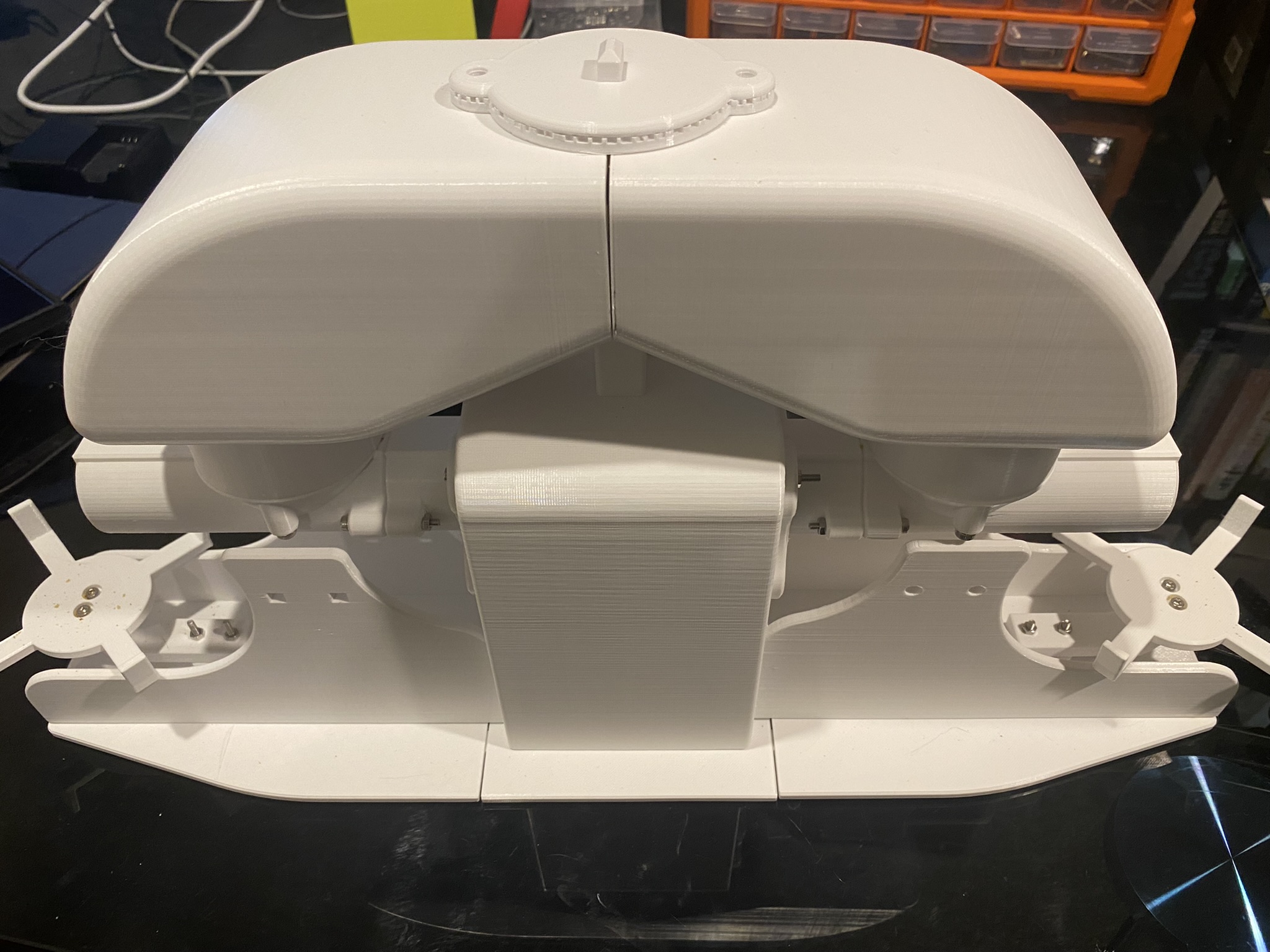

So how does it work and how is it put together?
To simply describe what is built, the Feeder uses an Iot button click to trigger events over the internet to instruct the feeder to dispense food into one or both food bowls.

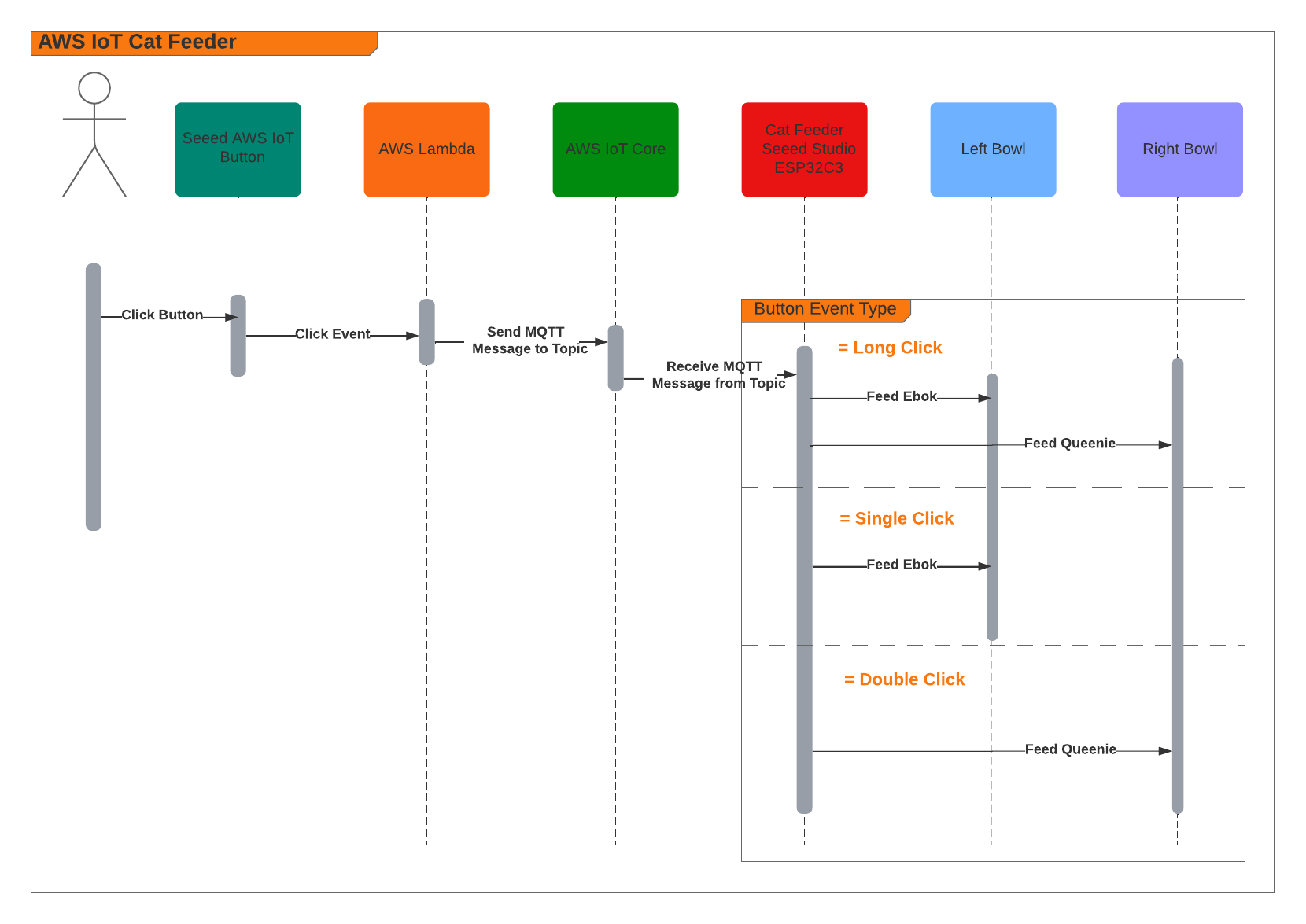

Here are some diagrams describing the architecture of the solution - the technical things that happens in-between the IoT button and the Cat Feeder.
When the Feeder receives a MQTT message from the AWS IoT Core Service, it runs the motor for 10 seconds to dispense food into either one of food bowls, and if the message contains an event value to dispense food into both bowls we can run both motors concurrently using the L298N controller.
Here's a video of some timelapse picture captured during the 3 weeks it took to 3D print the feeder.

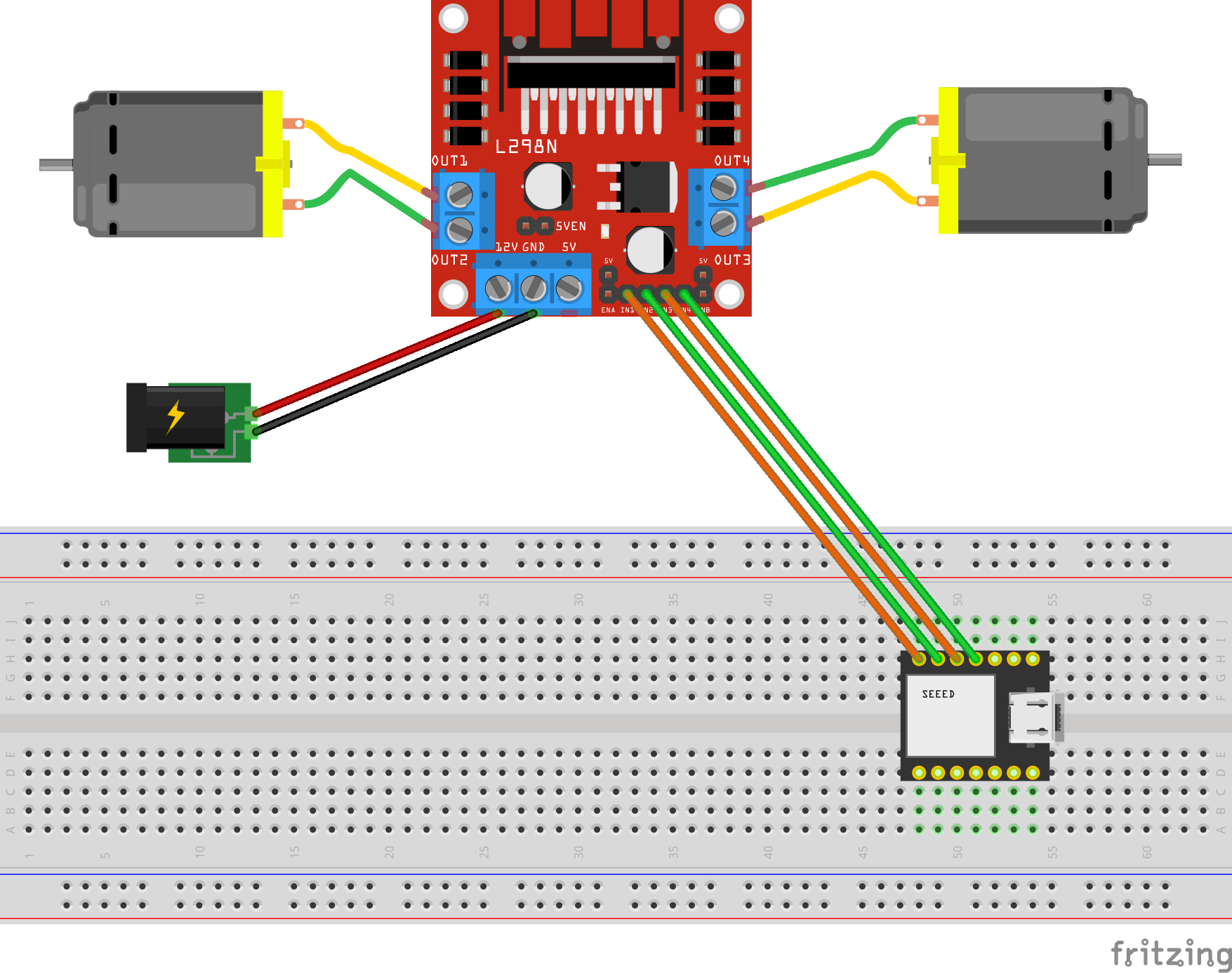

The Feeder is made up of a small handful of basic hardware components, below is a Breadboard diagram depicting the components used and how they are all wired up together. A regular 12V 2A DC power adapter supply is used to power all the components.
The code to start and stop a motor is about 10 lines of code as shown below. This is the completed version of the Arduino Sketch shown in Part 2 of this blog series when it was partially written at the time.
#include "secrets.h"
#include <WiFiClientSecure.h>
#include <MQTTClient.h>
#include <ArduinoJson.h>
#include "WiFi.h"
// The MQTT topics that this device should publish/subscribe
#define AWS_IOT_PUBLISH_TOPIC "cat-feeder/states"
#define AWS_IOT_SUBSCRIBE_TOPIC "cat-feeder/action"
WiFiClientSecure net = WiFiClientSecure();
MQTTClient client = MQTTClient(256);
int motor1pin1 = 32;
int motor1pin2 = 33;
int motor2pin1 = 16;
int motor2pin2 = 17;
void connectAWS()
{
WiFi.mode(WIFI_STA);
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
Serial.println("Connecting to Wi-Fi");
Serial.println(AWS_IOT_ENDPOINT);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
// Configure WiFiClientSecure to use the AWS IoT device credentials
net.setCACert(AWS_CERT_CA);
net.setCertificate(AWS_CERT_CRT);
net.setPrivateKey(AWS_CERT_PRIVATE);
// Connect to the MQTT broker on the AWS endpoint we defined earlier
client.begin(AWS_IOT_ENDPOINT, 8883, net);
// Create a message handler
client.onMessage(messageHandler);
Serial.println("Connecting to AWS IOT");
Serial.println(THINGNAME);
while (!client.connect(THINGNAME)) {
Serial.print(".");
delay(100);
}
if (!client.connected()) {
Serial.println("AWS IoT Timeout!");
return;
}
Serial.println("About to subscribe");
// Subscribe to a topic
client.subscribe(AWS_IOT_SUBSCRIBE_TOPIC);
Serial.println("AWS IoT Connected!");
}
void publishMessage()
{
StaticJsonDocument<200> doc;
doc["time"] = millis();
doc["state_1"] = millis();
doc["state_2"] = 2 * millis();
char jsonBuffer[512];
serializeJson(doc, jsonBuffer); // print to client
client.publish(AWS_IOT_PUBLISH_TOPIC, jsonBuffer);
Serial.println("publishMessage states to AWS IoT" );
}
void messageHandler(String &topic, String &payload) {
Serial.println("incoming: " + topic + " - " + payload);
StaticJsonDocument<200> doc;
deserializeJson(doc, payload);
const char* event = doc["event"];
Serial.println(event);
feedMe(event);
}
void setup() {
Serial.begin(9600);
connectAWS();
pinMode(motor1pin1, OUTPUT);
pinMode(motor1pin2, OUTPUT);
pinMode(motor2pin1, OUTPUT);
pinMode(motor2pin2, OUTPUT);
}
void feedMe(String event) {
Serial.println(event);
bool feedLeft = false;
bool feedRight = false;
if (event == "SINGLE") {
feedLeft = true;
}
if (event == "DOUBLE") {
feedRight = true;
}
if (event == "LONG") {
feedLeft = true;
feedRight = true;
}
if (feedLeft) {
Serial.println("run left");
digitalWrite(motor1pin1, HIGH);
digitalWrite(motor1pin2, LOW);
}
if (feedRight) {
Serial.println("run right");
digitalWrite(motor2pin1, HIGH);
digitalWrite(motor2pin2, LOW);
}
delay(10000);
digitalWrite(motor1pin1, LOW);
digitalWrite(motor1pin2, LOW);
digitalWrite(motor2pin1, LOW);
digitalWrite(motor2pin2, LOW);
delay(2000);
Serial.println("fed");
}
void loop() {
publishMessage();
client.loop();
delay(3000);
}
Demo Time
The Seeed AWS IoT Button is able to detect 3 different types of click events: Long, Single and Double, and we are able to leverage this all the way to the feeder so we will have it performing certains actions base on the click event type.
The video below demonstrates the following scenarios:
- Long Click: this will dispense food into both cat bowls
- Single Click: this will dispense food into Ebok's cat bowl
- Double Click: this will dispense food into Queenie's cat bowl
What's next?
Build the nervous system of an ultimate nerd project I have in mind that would allow me to voice control actions controlling servos, LEDs and audio outputs, by using a mesh of Seeed XIAO BLE Sense micro-controllers and TinyML Machine Learning.
Hosting multiple subsites under a serverless website instance
Introduction
Recently, I was tasked with coming up with a solution for a single website instance to host various pockets of documentations scattered across a growing number of Git repositories; each repository hosted documentation for a specific subject domain written in Markdown format - you may have come across README.md files all over the internet which is a classic example of Markdown.
Here is a list of requirements based on what the solution has to solve:
- Website Hosting: the documentation website must be accessible from anywhere over the public internet. Optionally, we could limit access to a list of whitelisted IPs.
- Authentication: access is only granted to those that should have it. Federating an IdP is ideal, e.g. Azure AD.
- Serverless.
- Host multiple sets of documentation scattered across multiple Azure DevOps Git Repositories.
- Versioning: store each set of documentation in source control for all its goodness.
- Format: create the documentation in plain text without having to worry much about styling and formatting. This is where Markdown file format comes in.
- Pipelines to detect changes to documentation that would in turn trigger builds and deployments.
- Azure AD Federation for SSO, this is especially useful for organisations with many applications and users so existing credentials can be re-used and managed the same way.
Solution
Serverless Website Hosting Infrastructure
The Serverless Website Hosting Infrastructure I am about to talk about is built on top on an AWS's sample solution found here. I added resources on top of the example to suit our needs.
- The user visits https://docs.example.co.nz from a browser on any device.
- CloudFront: We are leveraging this component as the Content Distribution Network for the website, using the standard pattern of serving the CDN using an S3 Bucket.
- Successful Lambda@Edge Check Auth: Static website content stored in S3 will only be served if the user is authenticated - a valid JWT (JSON Web Token) is found in the request.
- Unsuccessful Lambda@Edge Check Auth: Return an HTTP 302 in the response to the user's browser to redirect user to Cognito so the user can sign in
- This CloudFront instance is configured with the following settings:
- Website content is cached for 30 minutes, each expired content file will be retrived from S3 individually.
- Configured with the Alternative Domain Name: docs.example.co.nz
- Configured with an SSL certificate for the sub-domain docs.example.co.nz using ACM (Amazon Certificate Manager) Service, the certificate is free and will be automatically renewed and managed by AWS.
- Lambda@Edge: Validates every incoming request to CloudFront for the existence of a cookie to see if it contains a user's authentication information/JWT.
- No authentication information: Respond to Cloudfront that the user needs to login.
- Contains authentication cookie: Exchange the authentication information for a JWT token and store the JWT in the cookies in the HTTP response.
- S3: This bucket is used as a CloudFront Origin and contains the static content files for the Documentation Website, e.g. HTML/CSS/JS/Images.
- Amazon Cognito: This is the component used as the entry point for Authentication into the website, we will Federate Azure AD as an IdP using SAML integration - the user will be redirected to Azure AD for authentication.
- Post back: When Cognito receives a SAML Assertion/Token from Azure AD after a successful login, a user's profile of that user is saved into the Cognito's User Pool by collecting the user attributes (claims) from the SAML Assertion.
- Azure Active Directory: This solution will Federate Azure AD into Cognito using SAML, I suggest on following this walkthrough if you have a requirement for Azure AD Federation: https://aws.amazon.com/blogs/security/how-to-set-up-amazon-cognito-for-federated-authentication-using-azure-ad/
- Successful authentication: the IDP posts back a SAML Assertion/Token back to Cognito
Set up instructions - Website Infrastructure
- Create an AWS CloudFormation stack for the Website Hosting Infrastructure from the existing YML file "templates/aws-website-infrastructure.yml" found in this repository. We'll need the Stack's Outputs later on when we create the AWS Pipeline.
Azure DevOps and AWS CodePipeline
There are 2 types of pipelines that makes up the end-to-end pipeline for this solution, 1st type is for the Azure side to push Markdown files into AWS, the other is for AWS to compile the Markdown files and deploy them into S3 where the Website Content is hosted.
In the Azure pipeline we take the raw documentation (Markdown) from a Git repository hosted in Azure DevOps Git Repositories, each time a set code changes is pushed into any one of the Git repositories will trigger an Azure Pipeline "Run", the Azure Pipeline will upload the Markdown and assets files to a centralised S3 bucket repository (created by the Website Infrastructure CloudFormation Stack earlier).
Each Azure DevOps repository will host documentation for a specific domain topic, this Pipeline pattern is designed to cater for a growing number of repositories that has a requirement to host all documentations within a single Wesbite instance; the Azure Pipeline needs to be configured for each instance of Azure DevOps Git Repository. Once the Markdown files are converted to HTML during the CodeBuild stage of the CodePipeline execution, the output of those files are upload the S3 bucket that is served behind the CloudFront/Website stack.
Set up instructions - Azure & AWS Pipelines
1 This step is skipped if the infrastruture website was previously set up for the another (first) set of documentation, in this case re-use the Access Keys created at that time in subsequent steps. Create a set of Access Keys for an AWS IAM User with a policy to perform the following actions on the "SourceZipBucket" bucket created in the Website Infrastructure CloudFormation stack earlier:
- s3:PutObject
- s3:GetObject
- s3:DeleteObject
- s3:ListBucket
#example
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "VisualEditor0",
"Effect": "Allow",
"Action": [
"s3:PutObject",
"s3:GetObject",
"s3:DeleteObject",
"s3:ListBucket"
],
"Resource": [
"arn:aws:s3:::${REPLACE-WITH-SOURCE-ZIP-BUCKET-NAME}/*",
"arn:aws:s3:::${REPLACE-WITH-SOURCE-ZIP-BUCKET-NAME}"
]
},
{
"Sid": "VisualEditor1",
"Effect": "Allow",
"Action": "s3:ListAllMyBuckets",
"Resource": "*"
}
]
}
2 Create a new ADO pipeline from the existing YML file "templates/azure-pipeline.yml" in this repository.
Use these as the variables for the Pipeline using the same case:
- S3-documentation-bucket-name: use the Outputs value of "SourceZipBucket" from the AWS CloudFormation Website Infrastructure Stack created earlier - this is the same S3 bucket name used in the IAM User policy.
- AWS_ACCESS_KEY_ID: The value of the Access Key ID created earlier.
- AWS_SECRET_ACCESS_KEY: The value of the Secret Access Key created earlier.
- AWS_REGION: The region where the SourceZipBucket was created in.
- sub-site-name: This is the name of the URL path for this set of documentation, it could be the name of the Azure DevOps Repository Name for easy reference. E.g. https://docs.example.co.nz/${sub-site-name}
3 Hit Run to start a pipeline execution
4 Skip this Step if you skipped Step 1. Create a CloudFormation stack for the Pipeline to deploy new Documentation, use the Cloudformation YML file "templates/aws-pipeline.yml" in this repository. Use the following as the Parameter values for the Pipeline:
- SourceBucket: This is the Outputs value of "SourceZipBucket" from the AWS CloudFormation Website Infrastructure Stack created earlier.
- StaticFilesBucket: This is the Outputs value of "DocumentationS3Bucket" from the AWS CloudFormation Website Infrastructure Stack created earlier.
Populate the website skeleton for Docusaurus
The CodeBuild instance in the pipeline runs a set of commands that takes the Markdown and asset files, then produces as an output the HTML format equivalent files of the entire website for all sub-sites. In order for the CodeBuild instance to run successfully it expects the skeleton files in the root of the "DocumentationS3Bucket" S3 Bucket found in the Outputs of the Website Infrastructure CloudFormation Stack, this is so Docusaurus knows how to render the Markdown files into HTML.
To generate the skeleton files and upload it to the S3 bucket use the following commands on a local machine:
npx create-docusaurus@latest website classic
aws s3 cp website/. s3://${DocumentationS3Bucket}
Smart Cat Feeder – Part 2
The source code for this blog can be found in my Github repository: https://github.com/chiwaichan/aws-iot-cat-feeder. This repository only includes the source code for the solution implemented up to this stage/blog in the project.
In the end I decided to go with the Seeed Studio XIAO ESP32C3 implementation of the ESP32 micro-controller for $4.99 (USD). I also ordered some other bits and pieces from AliExpress that's going to take some time to arrive.
In this Part 2 of the blog series I will demonstrate the exchange of messages (JSON payload) using the MQTT protocol between the ESP32 and the AWS IoT Core Service, as well as the exchange of messages between a Lambda Function and the ESP32 - this Lambda is written in Python which is intended to replace the Lambda triggered by the IoT button event found in Part 1.
Prerequisites if you like to try out the solution using the source code
- An AWS account.
- An IoT button. Follow Part 1 of this blog series to onboard your IoT button into the AWS IoT 1-Click Service.
- Create 2 Certificates in the AWS IoT Core Service. One certificate is for the ESP32 to publish and subscribe to Topics to IoT Core, and the other is used by the IoT button's Lambda to publish a message to a Topic subscribed by the ESP32.
Create a Certificate using the recommended One-Click option.
Download the following files and take note of which device (the ESP32 or the IoT Lambda) you like to use this certificate for:
- xxxxx.cert.pem
- xxxxx.private.key
- Amazon Root CA 1: https://www.amazontrust.com/repository/AmazonRootCA1.pem
Activate the Certificate.
Click on Done. Then repeat the steps to create the second Certificate.
Publish ESP32 States to AWS IoT Core

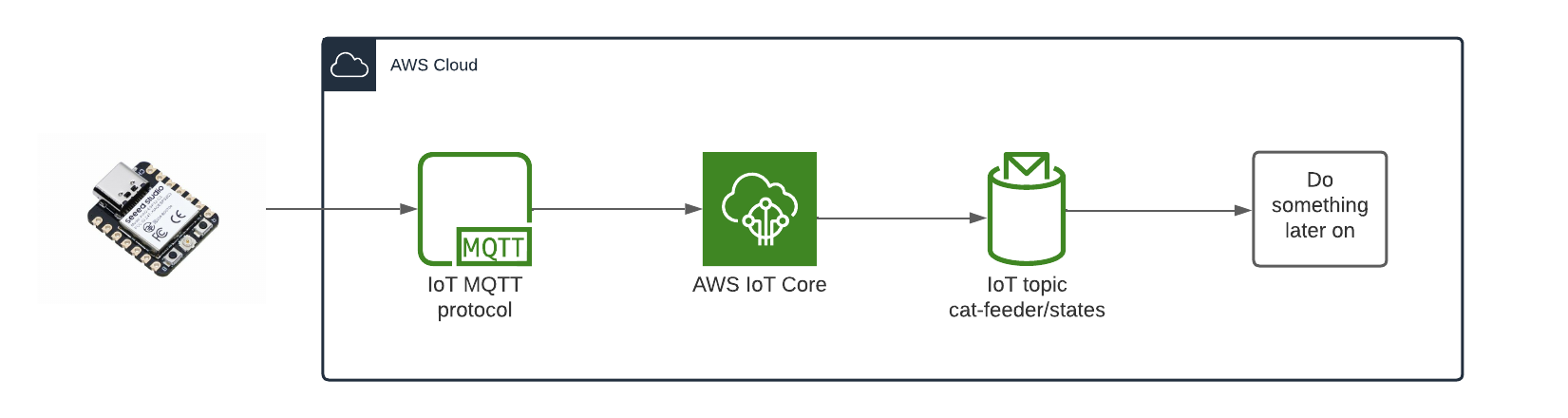

The diagram above depicts the components used that is required in order for the ESP32 to send the States of the Cat Feeder, I've yet to decide what to send but examples could be 1.) battery level 2.) Cat weight (based on a Cat's RFID chip and some how weighing them while they eat) 3.) or how much food is remaining in the feeder. So many options.
- ESP32: This is the micro-controller that will eventually have a bunch of hardware components that we will take States from, then publish to a Topic.
- MQTT: This is the lightweight pub/sub protocol used to send IoT messages over TCP/IP to AWS IoT Core.
- AWS IoT Core: This is the service that will forward message to the ESP32 micro-controller that are subscribed to Topics.
- IoT Topic: The Lambda will publish a message along with the type of button event (One click, long click or double click) to the Topic "cat-feeder/action", the value of the event is subject to what is supported by the IoT button you use.
- Do something later on: I'll decide later on what to do downstream with the State values. This could be anything really, e.g. save a time series of the data into a database or bunch of DynamoDB tables, or get an alert to remind me to charge the Cat Feeder's battery with a customizable threshold?
Instructions to try out the Arduino/ESP32 part of the solution for yourself
- Install the Arduino IDE.
- Follow this AWS blog on setting up an IoT device, start from "Installing and configuring the Arduino IDE" to including "Configuring and flashing an ESP32 IoT device". Their blog walks us through on preparing the Arduino IDE and on how to flash the ESP32 with a Sketch.
- Clone the Arduino source code from my Github repository: https://github.com/chiwaichan/aws-iot-cat-feeder

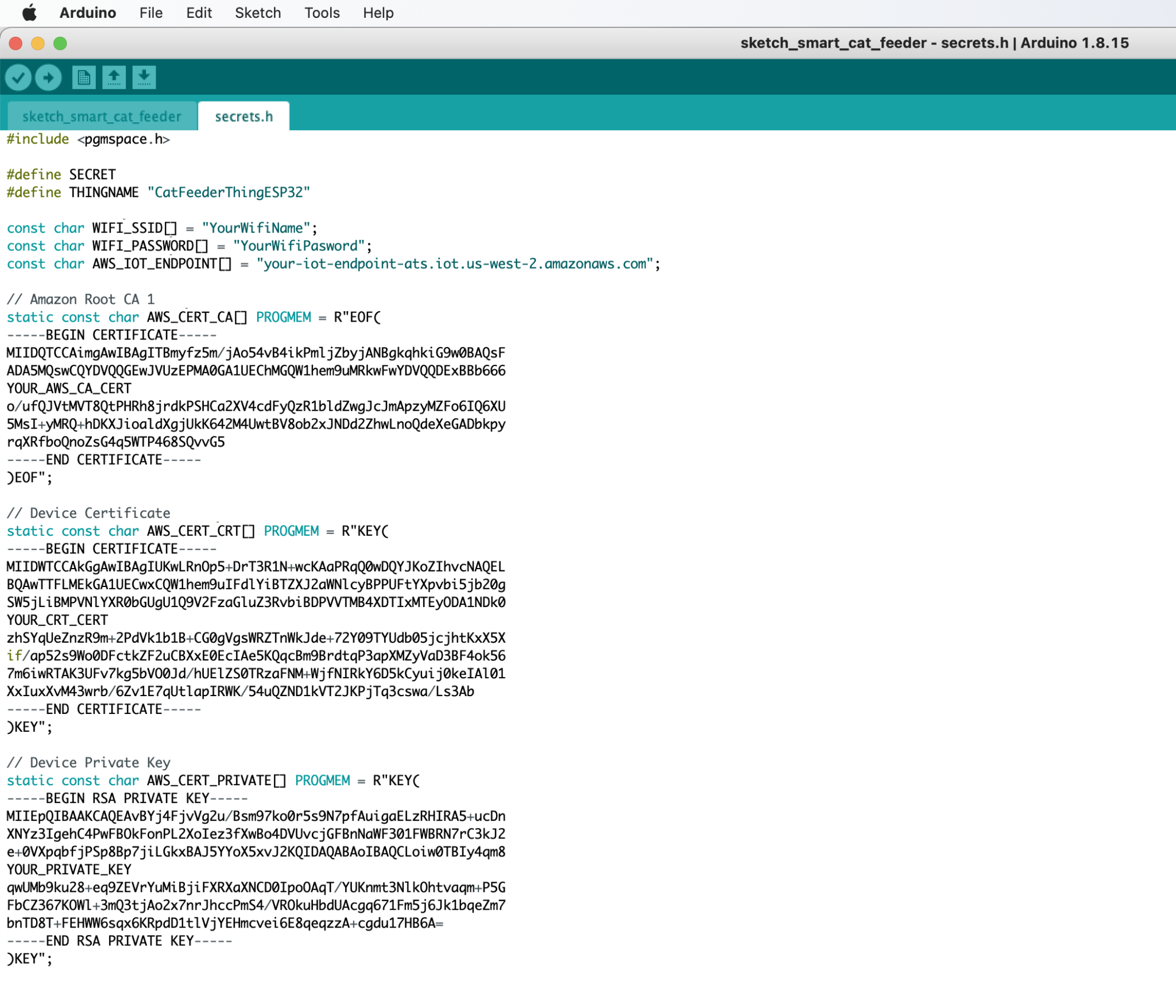

- Go to the "secrets.h" tab and replace the following variables:
- WIFI_SSID: This is the name of your Wifi Access Point
- WIFI_PASSWORD: The password for your Wifi.
- AWS_IOT_ENDPOINT: This is the regional endpoint of your AWS Iot Core Service.
- AWS_CERT_CA: The content of the Amazon Root CA 1 file created in the prerequisites for the first certificate.
- AWS_CERT_CRT: The content of the xxxxx.cert.pem file created in the prerequisites for the first certificate.
- AWS_CERT_PRIVATE: The content of the xxxxx.private.key file created in the prerequisites for the first certificate.

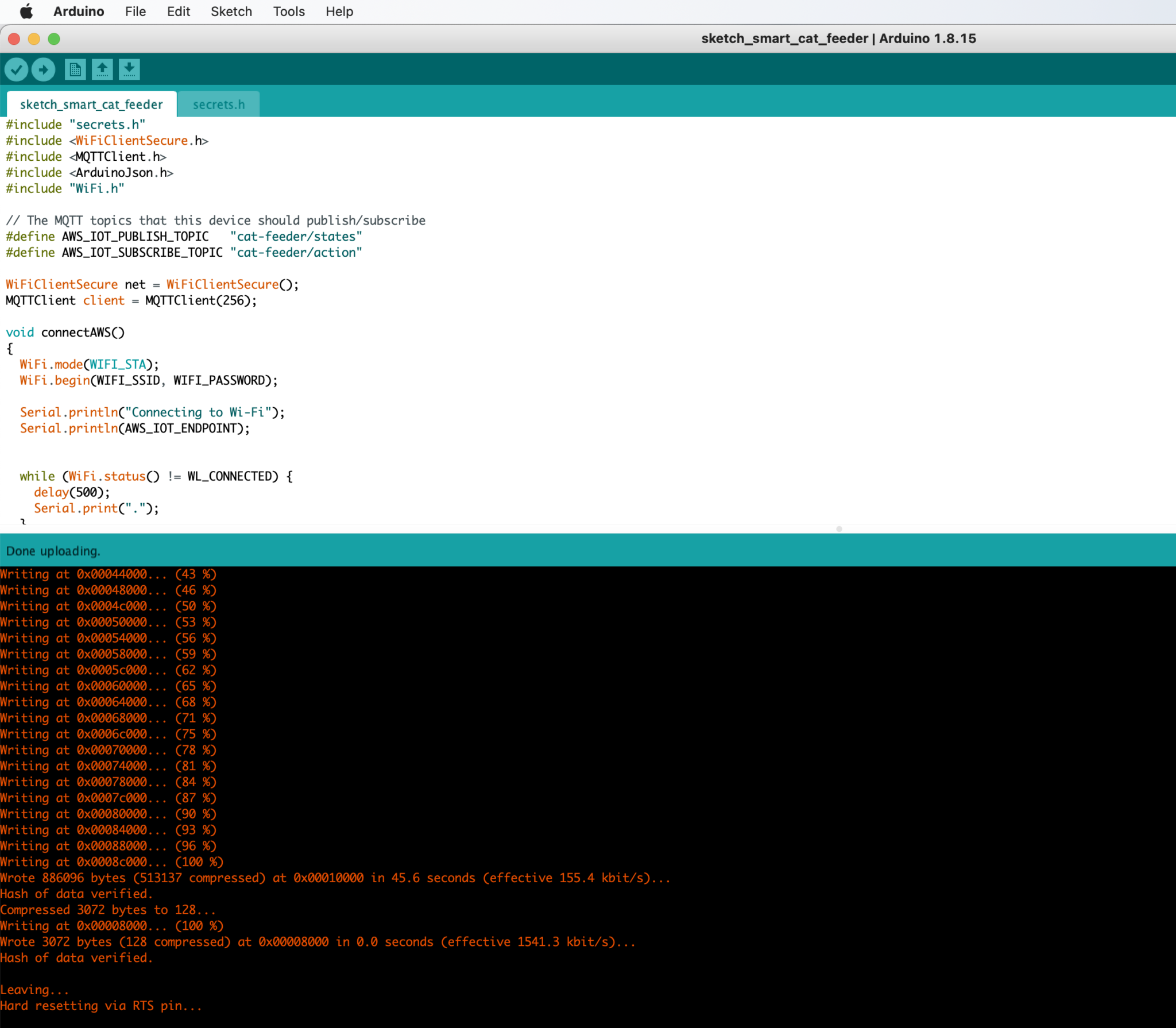

- Flash the code onto the ESP32
You might need to push a button on the micro-controller during the flashing process depending on the your ESP32 micro-controller

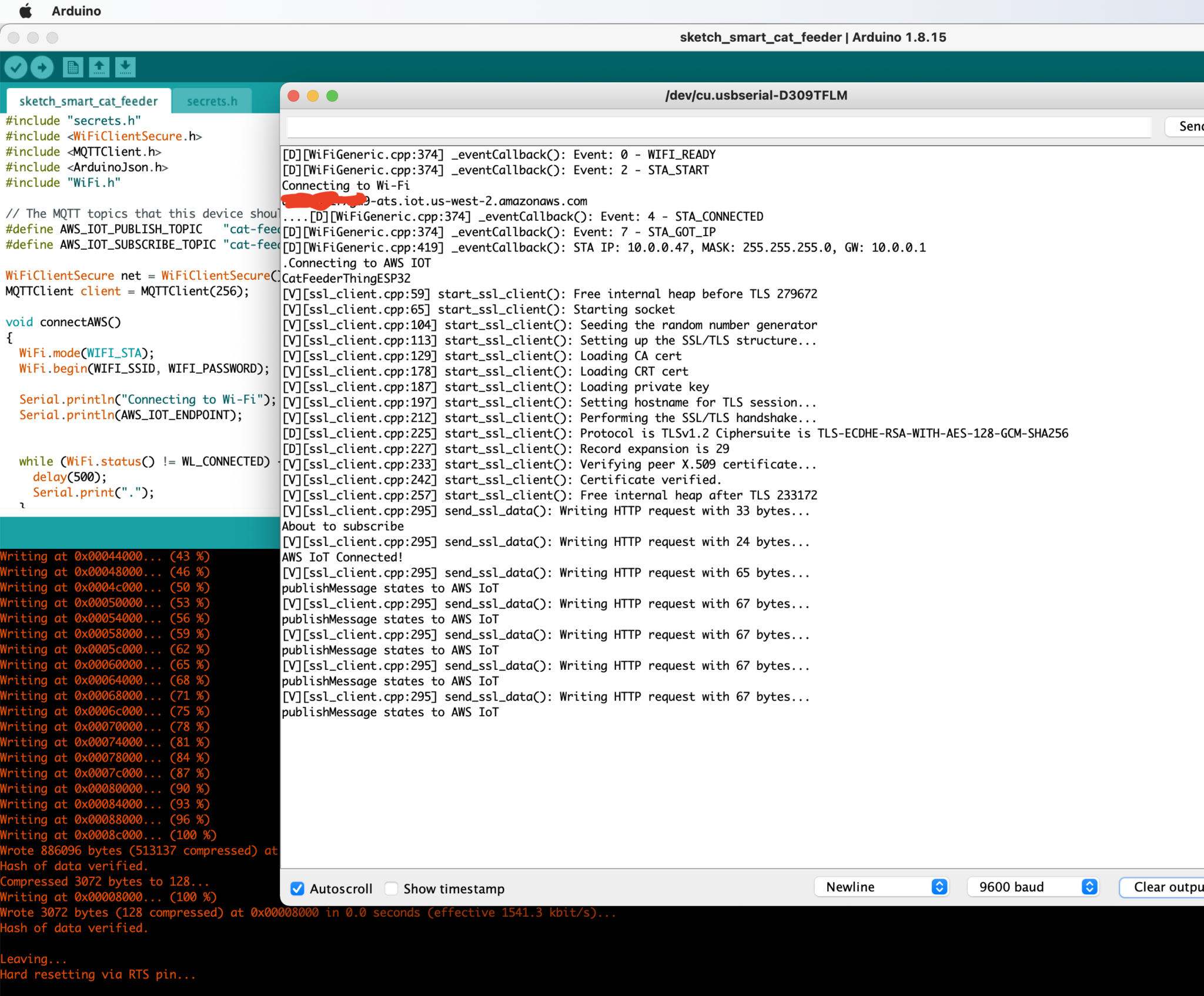

- Check the Arduino console to ensure the ESP32 can connect to AWS IoT and publish messages.
- Verify the MQTT messages is received by AWS IoT Core

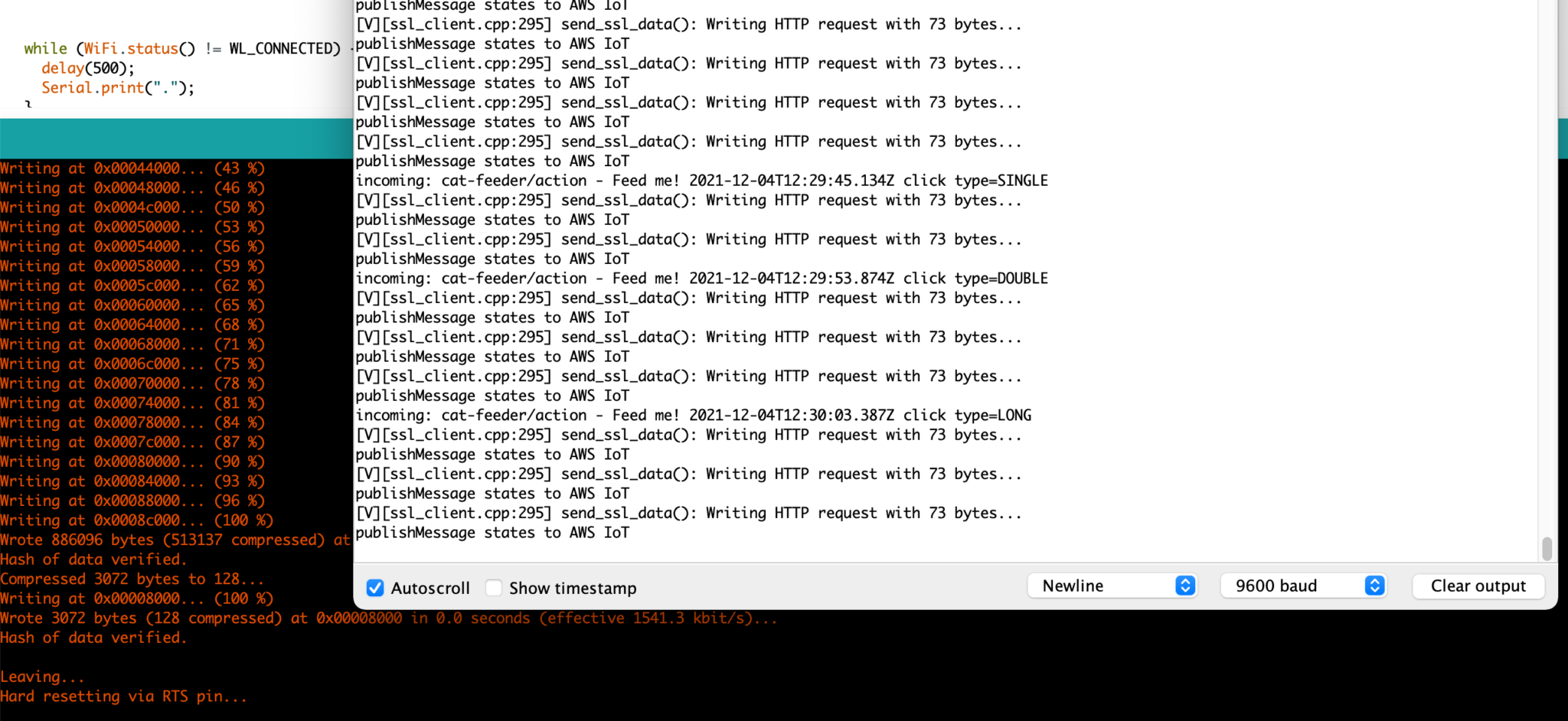

Sending a message to the ESP32 when the IoT button is pressed

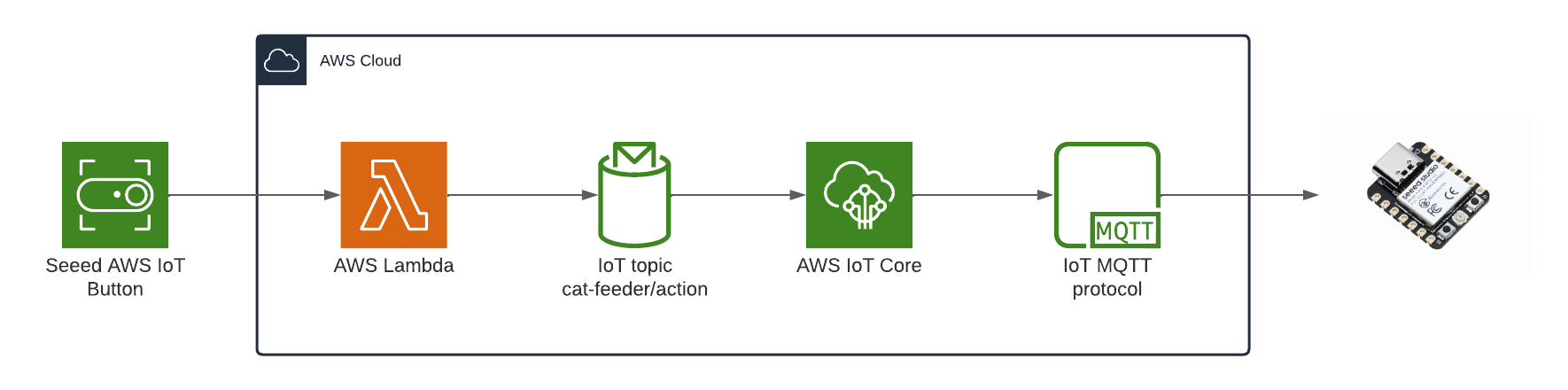

The diagram above depicts the components used to send a message to the ESP32 each time the Seeed AWS IoT button is pressed.
- AWS IoT button: this is the IoT button I detail in Part 1; it's a physical button that can be anywhere in the world where I can press to feed the fur babies once the final solution is built.
- AWS Lambda: This will replace the Lambda from the previous blog with the one shown in the diagram.
- IoT Topic: The Lambda will publish a message along with the type of button event (One click, long click or double click) to the Topic "cat-feeder/action", the value of the event is subject to what is supported by the IoT button you use.
- AWS IoT Core: This is the service that will forward message to the ESP32 micro-controller that are subscribed to Topics.
- ESP32: We will see details of the button event from each click in the Arduino console once this part is set up.
Instructions to set up the AWS IoT button part of the solution

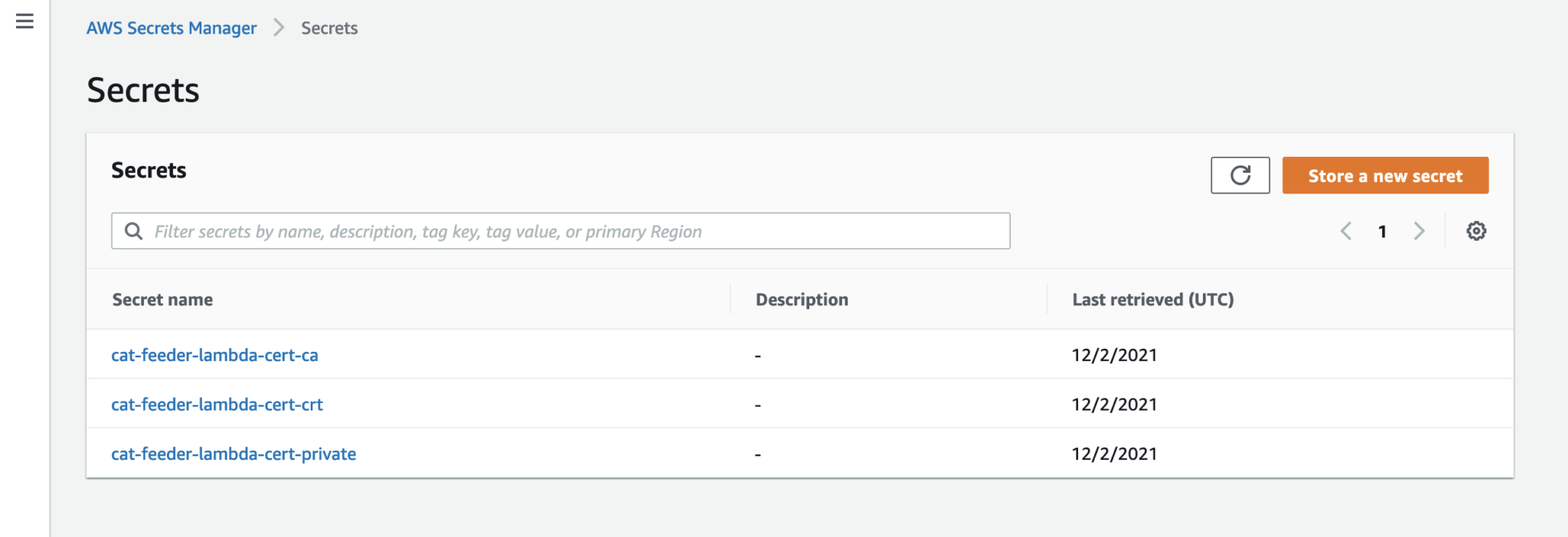

- Take the 3 files create in the second set of Certificate created in the AWS IoT Core Service in the prerequisites, then create 3 AWS Secrets Manager "Other type of secret: Plaintext" values. We need a Secret value for each file. This is to provide the Lambda Function the Certificate to call AWS IoT Core.
-
Get a copy of the AWS code from my Github repository: https://github.com/chiwaichan/aws-iot-cat-feeder
-
In a terminal go into the aws folder and run the commands found in the "sam-commands.text" file, be sure to replace the following values in the commands to reflect the values for your AWS account. This will create a CloudFormation Stack of the AWS IoT Services used by this entire solution.
- YOUR_BUCKET_NAME
- Value for IoTEndpoint
- Value for CatFeederThingLambdaCertName, this is the name of the long certificate value found in Iot Core created in the prerequisites for the second certificate.
- Value for CatFeederThingLambdaSecretNameCertCA, e.g. "cat-feeder-lambda-cert-ca-aaVaa2", check the name in Secrets Manager.
- Value for CatFeederThingLambdaSecretNameCertCRT
- Value for CatFeederThingLambdaSecretNameCertPrivate
- Value for CatFeederThingControllerCertName, this is the name of the long certificate value found in Iot Core created in the prerequisites for the second certificate used by the ESP32.
- Find the Lambda created in the CloudFormation stack and Test the Lambda to manually trigger the event.

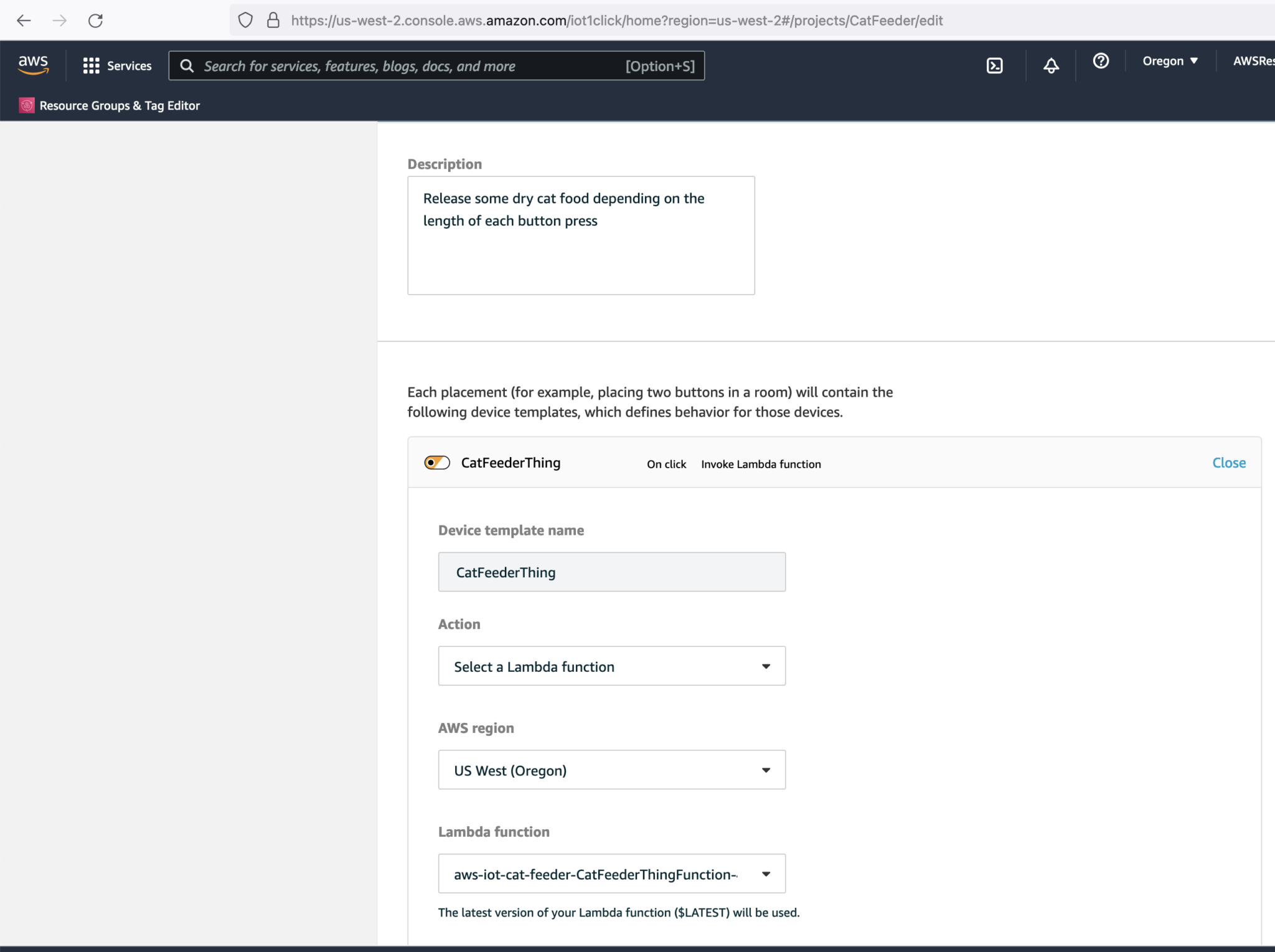

- If you have setup an IoT 1-Click Button found in Part 1, you can replace that Lambda with the one created by the CloudFormation Stack. Go to the "AWS IoT 1-Click" Service and edit the "template" for the CatFeeder project.
- Let's press the Iot Button in the following way:
- Single Click
- Double Click
- Long Click
- Verify the button events are received by the ESP32 by going to the Arduino console and you should see something like this:
What's next?
I recently got a Creality3D Ender-3 V2 printer, I've got many known unknowns I know I need to get up to speed with in regards to fundamentals of 3D printing and all the tools, techniques and software associated with it. I'll attempt to print an enclosure to house the ESP32 controller, the wires, power supply/battery (if I can source a battery that lasts for more than a month on a single charge) and most importantly the dry cat food; I like to use some mechanical components to dispense food each time we press the IoT button described in Part 1. I'll talk in depth on the progress made on the 3D printing in Part 3.
